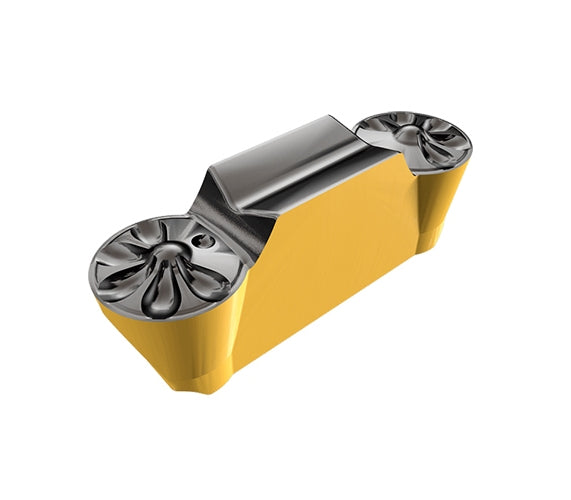

Iscar 3302935 GEMI-2010Y-IC808 Grooving Turning Insert

Product Description

The Iscar GEMI-2010Y-IC808 is a versatile insert designed for grooving and turning operations. It is suitable for external and internal applications, made from high-quality carbide, providing durability and efficiency in machining.

• Insert width measures 0.0790 inches
• Radius of 0.0390 inches for precision
• Compatible with stainless steel, hardened metals, and cast iron

Product Highlights

This insert is designed for professional machinists seeking reliable performance in various materials.

Product Information

Standard Information

• Brand: Iscar
• Insert Designation: GEMI

Technical Specifications

• Insert Width: 0.0790 inches
• Radius: 0.0390 inches
• External/Internal: External / Internal
• Operation/Application: Grooving / Turning
• Insert Material: Carbide
• Coating/Finish: TiAlN/AlTiN+TiN
• Work Material: Stainless Steel, Hi Temp Steel, Hardened Metals, Cast Iron
• Min. Grooving Feed: 0.0012 inches
• Max. Grooving Feed: 0.0031 inches
• Min. Turning Feed: 0.0024 inches
• Max. Turning Feed: 0.0047 inches
• Insert Center Width: 0.0630 inches
