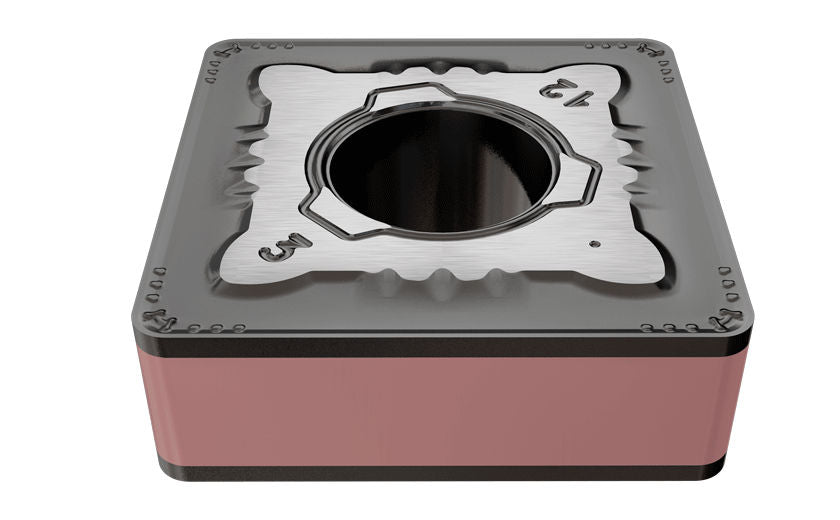

Iscar 3302386 SNMG-643-R3M-IC806 Carbide Insert

Product Description

The Iscar SNMG-643-R3M-IC806 Carbide Insert is designed for efficient machining applications. This insert is made from high-quality carbide and features a square shape at a 90-degree angle. It is suitable for medium to semi-roughing tasks, making it an ideal choice for various cutting operations.

• Insert Style: SNMG
• Coating: TiAlN+TiN
• Compatible with high-temperature materials

Product Highlights

This insert offers durability and stability during operations.

Product Information

Standard Information

• Brand: Iscar
• Insert Shape: 90° Square

Technical Specifications

• Clearance Angle: Negative
• Size: 0.7500 inches
• Corner Radius: 0.0470 inches
• Insert Material: Carbide
• Work Material: Hi Temp
• Machining Application: Medium-Semi Roughing
• Insert Coating: TiAlN+TiN
• Insert Thickness: 0.2500 inches
• Insert Edge Length: 0.7500 inches
• Min Depth of Cut: 0.0790 inches
• Max Depth of Cut: 0.4330 inches
• Min Feed: 0.0118 inches
• Max Feed: 0.0354 inches
