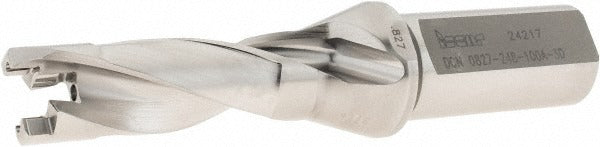

Iscar 3260100 Replaceable-tip Drill Weldon Flat Shank

Product Description

The ISCAR 3260100 is a SumoCham-series replaceable-tip drill body designed for precision holemaking in metalworking and machining applications. The drill accommodates a diameter range of 0.827 to 0.862 inches and reaches a maximum drilling depth of 2.48 inches, with a 3xD depth-to-diameter ratio. It accepts interchangeable inserts in the FCP, ICK, ICK-2M, ICM, ICN, ICP, and iCP-2M styles using an insert seat size 21. The 1-inch Weldon Flat shank provides secure tool holding in compatible chucks and holders. Through-coolant capability supports extended tool life and chip evacuation in demanding cut conditions. This tool body is intended for use by machinists and CNC operators in production and job-shop environments.

The ISCAR 3260100 is suited for ferrous and non-ferrous holemaking in both manual and CNC machining centers. Its replaceable-tip design reduces downtime by allowing insert swaps without removing the drill body from the machine. The Weldon Flat shank is compatible with standard side-lock toolholders common in vertical and horizontal machining centers. The overall length of 5.99 inches and body length of 3.79 inches make it appropriate for moderate-reach applications in production environments where consistent hole quality is required.

Key Features

• Diameter range of 0.827 to 0.862 inches accommodates close-tolerance holemaking
• Maximum drill depth of 2.48 inches with a 3xD depth-to-diameter ratio
• Accepts FCP, ICK, ICK-2M, ICM, ICN, ICP, and iCP-2M replaceable insert tips at seat size 21
• Through-coolant design supports chip flushing and thermal management at the cutting zone
• 1-inch Weldon Flat shank for secure engagement in side-lock toolholders
• Conforms to ISO 13399 tooling data standards for compatibility with CAM and tool management systems

Compatibility

Compatible insert styles include FCP, ICK, ICK-2M, ICM, ICN, ICP, and iCP-2M at insert seat size 21. The DCN-style toolholder body is part of the ISCAR SumoCham series. The 1-inch Weldon Flat shank fits standard side-lock holders designed for that shank diameter.

Installation Notes
