Iscar 3260095 Replaceable-tip Drill Weldon Flat Shank

Product Description

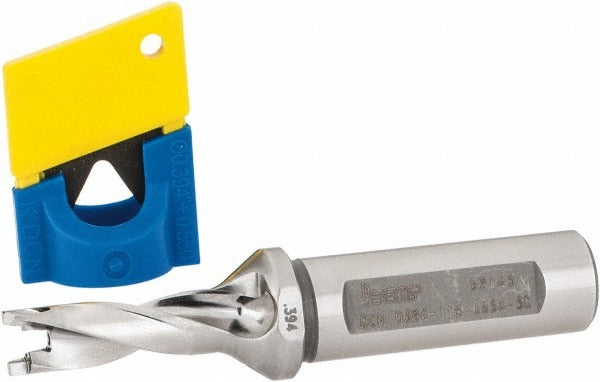

The ISCAR 3260095 is a replaceable-tip drill body designed for precision holemaking in metal fabrication and machining applications. It accepts a range of compatible insert tips to cover a drilling diameter of 0.394 to 0.409 inches, with a maximum drill depth of 1.18 inches and a depth-to-diameter ratio of 3xD. The drill body features a 5/8-inch Weldon Flat shank for secure toolholder engagement and includes through-coolant capability to support chip evacuation and thermal management during cutting. With an overall length of 3.71 inches, this body is sized for standard machining center and drill press setups. It is part of the ISCAR SumoCham series and conforms to ISO 13399 tooling data standards.

This drill body is suited for production holemaking on CNC machining centers and drilling machines in industrial and job-shop environments. The replaceable-tip design reduces downtime by allowing insert changes without removing the body from the toolholder. Through-coolant delivery makes it appropriate for deep-hole drilling cycles where heat and chip buildup are concerns. Machinists and tooling technicians working in steel, cast iron, and similar materials will find this body a functional fit for high-cycle drilling operations requiring consistent diameter accuracy.

Key Features

• Drilling diameter range of 0.394 to 0.409 inches accommodates compatible insert tip sizes
• Maximum drill depth of 1.18 inches with a 3xD depth-to-diameter ratio
• Through-coolant design supports chip evacuation and heat control during drilling
• 5/8-inch Weldon Flat shank provides positive anti-rotation engagement in the toolholder
• Compatible with FCP, ICK, ICK-2M, ICM, ICP, and iCP-2M insert styles
• Conforms to ISO 13399 tooling data standards for CAM and tooling management integration

Compatibility

Compatible insert styles include FCP, ICK, ICK-2M, ICM, ICP, and iCP-2M. This body uses the DCN toolholder style and is part of the SumoCham series platform.

Installation Notes

Installation is performed by qualified machinists or tooling technicians familiar with rotating cutting tool setups. Ensure the machine spindle is fully stopped and locked out before mounting or changing insert tips. Secure the Weldon Flat shank in a compatible toolholder to the torque specification provided by the toolholder manufacturer. Verify through-coolant passages are clear and that coolant pressure is within the machine and insert manufacturer guidelines before initiating a drilling cycle.
