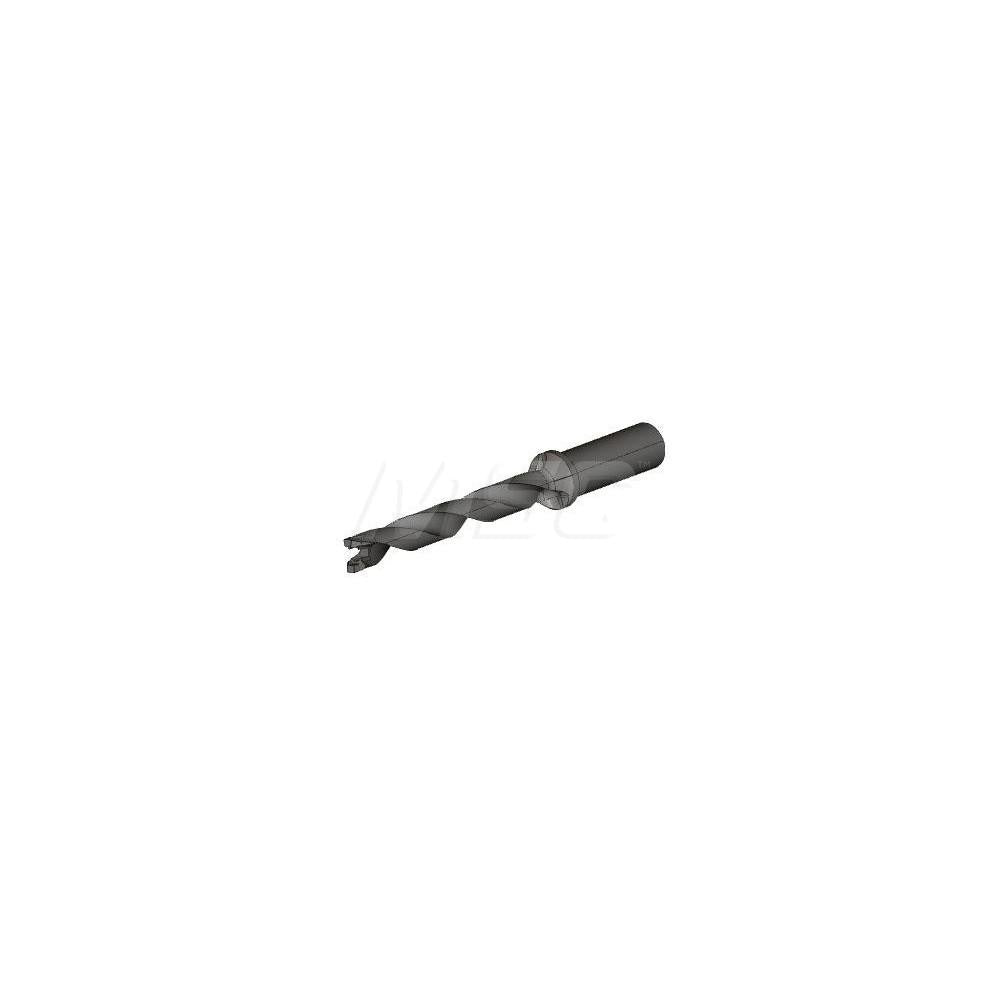

Iscar 3202714 Replaceable-tip Drill Sumocham Dcn Series

Product Description

The ISCAR 3202714 is a replaceable-tip drill body from the SumoCham DCN series, designed for precision holemaking in metalworking and machining applications. It accepts a range of drill diameters from 0.315 to 0.35 inches and reaches a maximum drill depth of 2.52 inches, with a depth-to-diameter ratio of 8xD. The tool body features a straight-cylindrical shank measuring 0.5 inches in diameter and includes through-coolant capability to extend tool life and manage chip evacuation during deep-hole operations. Installation and setup are handled by machinists and CNC tooling technicians.

This drill body is suited for production holemaking in ferrous and non-ferrous materials in both shop and manufacturing environments. The replaceable-tip design reduces tooling downtime by allowing insert changes without removing the drill body from the machine. It is built to ISO 13399 standards, making it compatible with tooling management software and digital tool libraries. Applications include general drilling operations where consistent hole quality and high-volume throughput are required.

Key Features

• Accepts drill diameters from 0.315 to 0.35 inches with a single drill body
• 8xD depth-to-diameter ratio for deep-hole drilling capability up to 2.52 inches
• Through-coolant design supports chip evacuation and reduced heat buildup at the cutting zone
• Straight-cylindrical shank at 0.5 inches diameter for standard toolholder compatibility
• Seat Size 8 accommodates FCP, ICK, ICK-2M, ICM, ICN, ICP, and iCP-2M insert styles
• Conforms to ISO 13399 tooling data standards

Compatibility

Compatible insert styles include FCP, ICK, ICK-2M, ICM, ICN, ICP, and iCP-2M at Insert Seat Size 8. This drill body is part of the ISCAR SumoCham DCN toolholder series and is designed for use with standard straight-cylindrical toolholders accepting a 0.5-inch shank diameter.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Power down and lock out the machine spindle before changing inserts or mounting the drill body. Ensure the toolholder bore is clean and within tolerance before seating the shank to prevent runout. Through-coolant connections should be verified for proper alignment and adequate pressure before starting a cut.
