Iscar 3202640 Replaceable-tip Drill Sumocham 0.63-0.665 in

Product Description

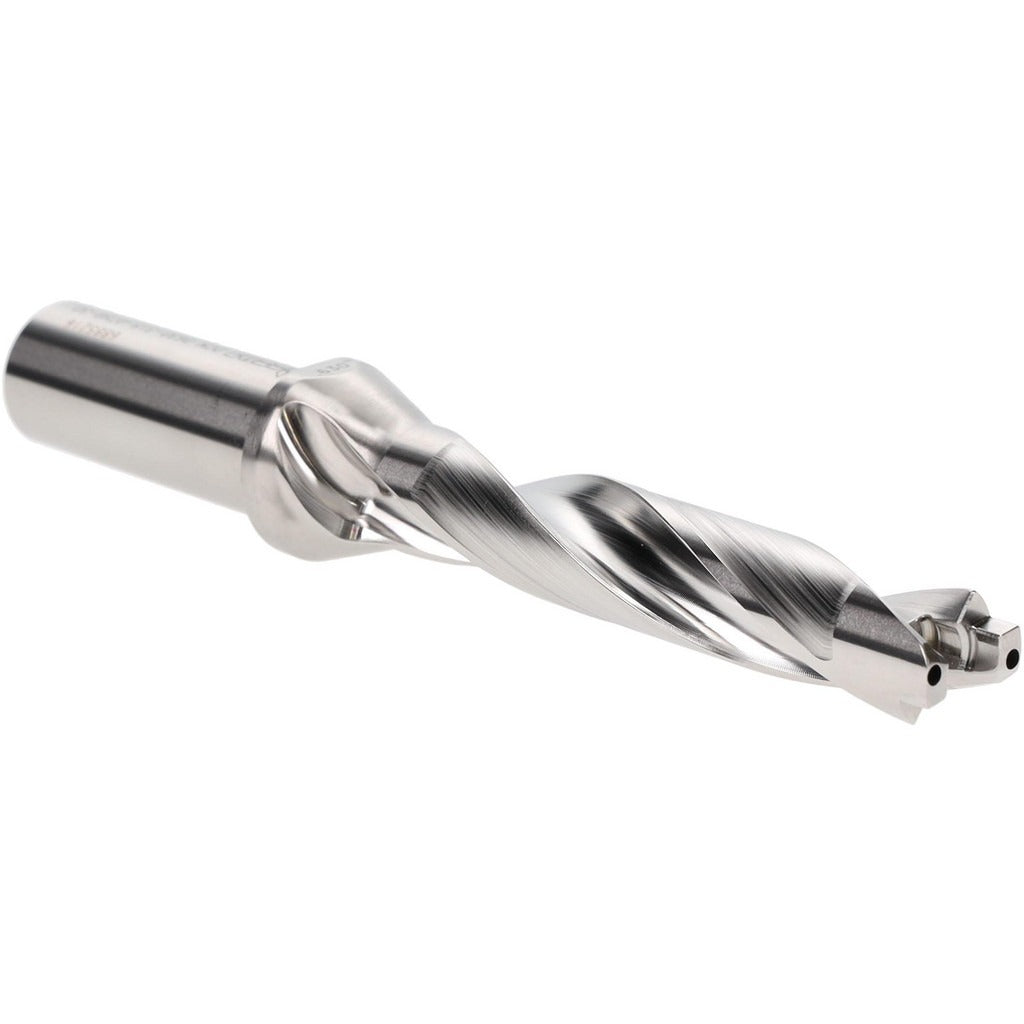

The ISCAR 3202640 is a SumoCham-series replaceable-tip drill designed for precision holemaking in metalworking and machining applications. The body accepts interchangeable drill-tip inserts, eliminating the need to replace the entire drill body when the cutting edge wears. The drill covers a diameter range of 0.63 to 0.665 inches, reaches a maximum depth of 3.15 inches, and features a straight-cylindrical shank with a 0.75-inch diameter. Through-coolant capability supports chip evacuation and extended tool life at higher cutting parameters. A licensed machinist or toolroom technician installs and operates this tool in CNC machining centers or similar equipment.

This drill body is suited for production holemaking in ferrous and non-ferrous materials where repeatable hole quality and fast tip changes are priorities. The 5xD depth-to-diameter ratio makes it appropriate for moderate-depth drilling cycles on machining centers in both job shop and high-volume manufacturing environments. The DCN toolholder style and straight-cylindrical shank allow straightforward installation in standard ER or hydraulic chuck toolholders. Compatible insert styles include FCP, ICK, ICK-2M, ICM, ICN, ICP, and iCP-2M at seat size 16.

Key Features

• Replaceable drill-tip design reduces tooling cost — replace only the insert, not the full body
• Through-coolant channels support chip flushing and heat management at the cutting zone
• 5xD depth-to-diameter ratio with a maximum drill depth of 3.15 inches
• Compatible with seven insert styles: FCP, ICK, ICK-2M, ICM, ICN, ICP, and iCP-2M
• Straight-cylindrical shank at 0.75 inches diameter fits standard chuck and toolholder configurations
• Conforms to ISO 13399 tooling data standards for CAM and tool-management system integration

Compatibility

Accepts FCP, ICK, ICK-2M, ICM, ICN, ICP, and iCP-2M replaceable drill-tip inserts at insert seat size 16. Part of the ISCAR SumoCham series using the DCN toolholder style.

Installation Notes

Installation and setup should be performed by a qualified machinist familiar with rotating cutting tool assemblies. Ensure the machine spindle is fully stopped and the control is in an e-stop or locked-out state before mounting, removing, or inspecting the drill body or inserts. Verify insert seating and torque the tip-locking mechanism according to the insert manufacturer's torque specification supplied with the insert. Confirm coolant-through passages are clear and that the coolant supply pressure is appropriate for the application before beginning a cutting cycle.
