Iscar 3202633 Replaceable-tip Drill Sumocham 5/8 Shank

Product Description

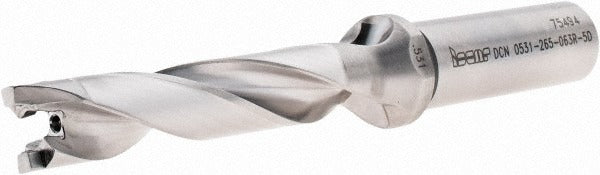

The ISCAR 3202633 is a replaceable-tip drill body in the SumoCham series, designed for holemaking operations in metal cutting and machining environments. It accepts a range of interchangeable drill tip inserts, allowing the cutting head to be swapped without replacing the entire tool body. The drill covers a diameter range of 0.531 to 0.547 inches and reaches a maximum depth of 2.65 inches, with a 5xD depth-to-diameter ratio. The 5/8-inch straight-cylindrical shank measures 0.625 inches in diameter and an overall length of 5.24 inches. Through-coolant capability channels fluid directly to the cutting zone, supporting higher feed rates and longer tool life. This tool is installed by machinists and CNC toolroom technicians working on drilling operations that require precise hole geometry and repeatable insert indexing.

The ISCAR 3202633 is suited for production drilling in ferrous and non-ferrous materials where hole accuracy and cycle time are priorities. The SumoCham DCN toolholder style is common in CNC machining centers and turning centers equipped for modular drilling systems. Compatible insert styles include FCP, ICK, ICK-2M, ICM, ICP, and iCP-2M, giving operators flexibility to match the tip geometry to the workpiece material and required finish. The through-coolant feature makes this drill appropriate for deep-hole applications where chip evacuation is a concern. This body is typically held in standard straight-shank tool holders or collet chucks that accept a 5/8-inch shank.

Key Features

• Replaceable insert tip design reduces tooling cost compared to solid drill replacement
• Diameter range of 0.531 to 0.547 inches with a 5xD depth-to-diameter ratio
• Through-coolant construction directs fluid to the cutting edge for chip control and heat management
• Accepts FCP, ICK, ICK-2M, ICM, ICP, and iCP-2M insert styles for material-specific tip selection
• 5/8-inch straight-cylindrical shank (0.625 inches) for broad holder compatibility
• Conforms to ISO 13399 tooling data standards for integration with CAM and tool management systems

Compatibility

Compatible insert styles: FCP, ICK, ICK-2M, ICM, ICP, and iCP-2M. The DCN toolholder style body is part of the ISCAR SumoCham series. Fits standard straight-shank holders accepting a 5/8-inch cylindrical shank.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Before inserting or removing the tip, power down and lock out the machine spindle per facility lockout/tagout procedures. Seat the drill body securely in the tool holder and verify clamping torque per the tool holder manufacturer specifications before running. Confirm through-coolant passages are clear and coolant pressure is within the machine and tooling system ratings before beginning a cut.
