Iscar 3202598 Replaceable-tip Drill 0.866-0.902 in 8xd

Product Description

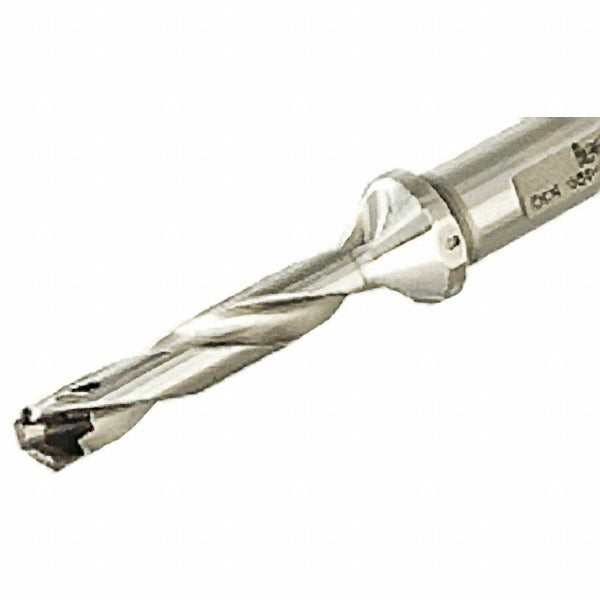

The ISCAR 3202598 is a SumoCham-series replaceable-tip drill designed for precision holemaking in metal-cutting applications. The DCN-style toolholder body accepts interchangeable drill-tip inserts, eliminating the need to replace the entire drill body when the cutting edge wears. The drill covers a diameter range of 0.866 to 0.902 inches, reaches a maximum drill depth of 6.93 inches, and delivers an 8xD depth-to-diameter ratio. Through-coolant capability feeds cutting fluid directly to the tip, supporting chip evacuation and thermal control at depth. Shank diameter is 1 inch with a Weldon flat drive flat configuration for positive rotational engagement in the spindle. Licensed machinists and CNC operators are the primary installers.

This drill body is suited for deep-hole holemaking operations on CNC machining centers and drill presses where consistent bore diameter and chip control at depth are required. The replaceable-tip design reduces tooling downtime in production environments: the body remains in the spindle while only the insert tip is swapped. Compatible insert styles include FCP, ICK, ICK-2M, ICM, ICP, and iCP-2M, giving the operator flexibility to match tip geometry and grade to the workpiece material. Typical applications include structural steel, alloy steel, and general-purpose ferrous machining where 8xD reach is needed.

Key Features

• SumoCham DCN-style body accepts FCP, ICK, ICK-2M, ICM, ICP, and iCP-2M replaceable tip inserts
• 8xD depth-to-diameter ratio with 6.93 inch maximum drill depth
• Through-coolant design channels fluid directly to the cutting zone for chip evacuation and heat control
• 1 inch Weldon flat shank provides positive drive engagement and resists spindle slip under torque
• 10.5 inch overall length with 8.3 inch body length and 2.2 inch shank length
• Conforms to ISO 13399 tooling data standards for CAM and tool management system integration

Compatibility

Compatible insert styles: FCP, ICK, ICK-2M, ICM, ICP, and iCP-2M. Part of the ISCAR SumoCham series, DCN toolholder style. Designed for use in CNC machining centers and drill presses equipped with a 1 inch Weldon flat tool holding system.

Installation Notes

Installation is performed by a licensed machinist or CNC tooling technician. Confirm the spindle toolholder is compatible with a 1 inch Weldon flat shank before mounting. Power down and lock out the machine before inserting or removing the drill body or swapping tip inserts. Follow the insert manufacturer torque procedure for tip seating using the appropriate ISCAR insert wrench to avoid over-seating or under-seating the replaceable tip.
