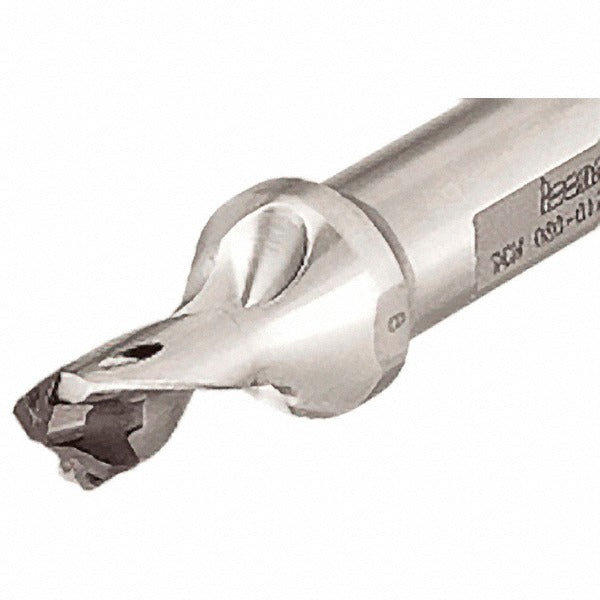

Iscar 3202492 Replaceable-tip Drill 10-10.4mm Weldon Shank

Product Description

The ISCAR 3202492 is a replaceable-tip drill body from the SumoCham series, designed for precision holemaking in metalworking applications. The drill accepts a range of interchangeable insert tips — compatible styles include FCP, ICK, ICK-2M, ICM, ICN, ICP, and iCP-2M — at insert seat size 10, allowing the operator to swap worn or damaged tips without replacing the entire body. The DCN-style toolholder body features a 16 mm Weldon flat shank for secure tool-holder engagement, through-coolant capability to manage chip evacuation and heat at the cutting zone, and an overall length of 79.2 mm. Drill diameter range is 10 to 10.4 mm with a maximum drilling depth of 15 mm.

This drill body is suited for production and job-shop environments where holemaking cycle times and tooling cost-per-hole are critical. The replaceable-tip design makes it appropriate for CNC machining centers and turning centers running steel, cast iron, stainless, and similar workpiece materials. The Weldon flat shank indexes directly into compatible side-lock holders. Through-coolant delivery makes the tool effective in deep drilling passes and harder-to-machine materials where chip packing is a concern. Installation and insert seating is typically performed by a machinist or toolroom technician following the machine shop's standard tooling setup procedure.

Key Features

• Replaceable-tip design accepts FCP, ICK, ICK-2M, ICM, ICN, ICP, and iCP-2M insert styles at seat size 10
• Through-coolant construction supports efficient chip evacuation and extended tip life
• 16 mm Weldon flat shank provides positive, repeatable tool-holder engagement
• SumoCham series DCN toolholder body built to ISO 13399 standards
• Drill diameter range of 10 to 10.4 mm accommodates close-tolerance bore sizing with tip selection
• Compact 79.2 mm overall length minimizes overhang and supports rigidity in tight setups

Compatibility

Compatible insert styles: FCP, ICK, ICK-2M, ICM, ICN, ICP, and iCP-2M at insert seat size 10. Part of the ISCAR SumoCham series with DCN toolholder style.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Before inserting or removing the replaceable tip, ensure the machine spindle is fully stopped and locked out per the facility lockout/tagout procedure. Seat the insert tip securely using the appropriate ISCAR torque key before engaging the coolant circuit. Verify through-coolant passages are clear and the machine tool holder is rated for the shank diameter and style before operation.
