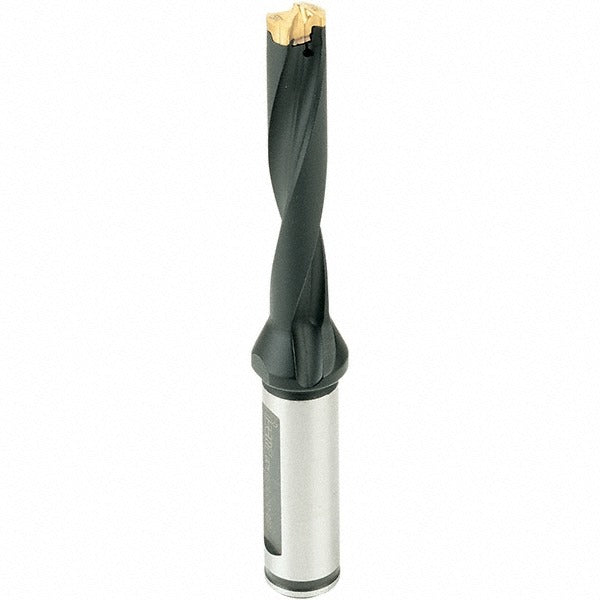

Iscar 3200591 Replaceable Tip Drill 20-20.9mm Weldon

Product Description

The ISCAR 3200591 is a replaceable-tip drill body from the CHAMDRILL series, designed for precision holemaking in metalworking and machining applications. It accepts IDI-SG and IDI-SK insert styles, allowing the cutting tip to be swapped out without replacing the entire tool body. The drill covers a diameter range of 20 to 20.9 mm (0.7874 to 0.8228 inches) and supports a maximum drill depth of 60 mm (2.362 inches), corresponding to a 3xD depth-to-diameter ratio. Overall length is 143 mm (5.630 inches). Through-coolant capability is built in, supporting chip evacuation and thermal management during deep-hole drilling operations.

This tool body is suited for production machining environments where consistent hole quality and fast insert changeover are priorities. The Weldon flat shank with a 25 mm (0.984 inch) diameter provides a positive drive connection in standard Weldon-style toolholders, reducing slip under high feed rates. Typical applications include drilling in steel, cast iron, and other ferrous materials on CNC machining centers and lathes equipped with live tooling. The DCM toolholder style designation applies. This drill is used by machinists and tooling specialists in job shops, aerospace, automotive, and general manufacturing settings.

Key Features

• Replaceable IDI-SG and IDI-SK compatible insert tip for fast changeover without removing the body from the spindle
• Through-coolant design channels fluid directly to the cutting zone for improved chip flushing and tool life
• 25 mm Weldon flat shank provides positive anti-rotation drive in compatible toolholders
• 3xD depth-to-diameter ratio supports maximum drill depth of 60 mm (2.362 inches)
• Diameter range of 20 to 20.9 mm accommodates multiple finished bore sizes with appropriate insert selection
• Conforms to ISO 13399 tooling data standards for integration with CAM and tooling management systems

Compatibility

Compatible with IDI-SG and IDI-SK series replaceable drill tip inserts. Designed for use with DCM-style toolholders accepting a 25 mm Weldon flat shank. Part of the ISCAR CHAMDRILL series platform.

Installation Notes

Installation and insert changes should be performed by a qualified machinist or tooling technician with the machine spindle fully stopped and locked out per facility lockout/tagout procedures. Ensure the Weldon flat shank is properly seated and the set screw in the toolholder is torqued to the toolholder manufacturer's specification before operation. Verify through-coolant passages are clear and coolant pressure is appropriate for the application before initiating a cut. Do not exceed the maximum drill depth or feed rates specified by the insert manufacturer for the selected IDI-SG or IDI-SK tip.
