Iscar 3110505 Indexable Chamfer End Mill 45 Deg

Product Description

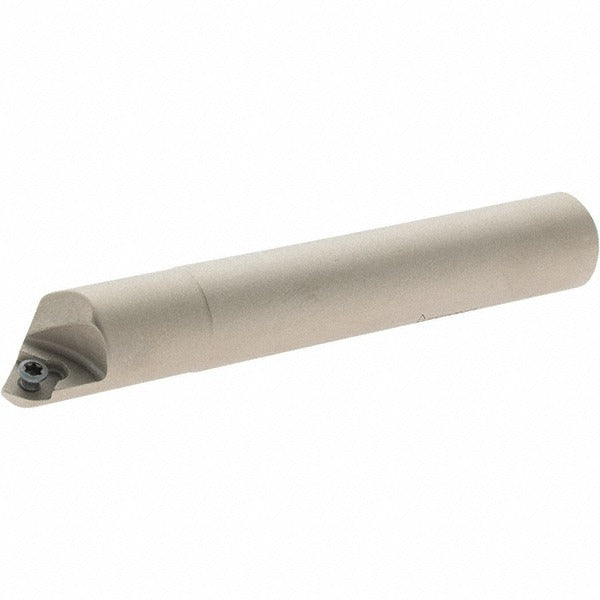

The ISCAR 3110505 is an indexable chamfer end mill designed for precision milling operations where a 45-degree lead angle is required. Part of the ISCAR Heliquad series, it accepts a single X/Q/SOMT 06 style insert secured by screw clamping. The tool covers a cutting diameter range of 6 millimeters to 14.1 millimeters with a 12 millimeter cylindrical shank and an overall length of 80 millimeters. Maximum depth of cut is 4 millimeters. It is compatible with the E45X toolholder style and conforms to ISO 13399 standards. This tool is installed and used by CNC machinists and tool-and-die professionals in production milling environments.

This chamfer end mill is suited for chamfering, beveling, and deburring operations on ferrous and non-ferrous workpieces in both jobshop and production floor settings. The single-insert design allows for fast insert indexing without removing the toolholder from the spindle. The cylindrical shank fits standard ER and side-lock collet systems commonly found on vertical and horizontal machining centers. The Heliquad series is engineered for stable, chatter-resistant cutting at the 45-degree lead angle geometry.

Key Features

• 45-degree lead angle geometry for chamfering and beveling operations
• Accepts X/Q/SOMT 06 insert style with screw-lock insert holding
• Cutting diameter range: 6 millimeters to 14.1 millimeters
• Maximum depth of cut: 4 millimeters
• Part of the ISCAR Heliquad series, compatible with E45X toolholder
• Conforms to ISO 13399 tooling data standards
• Cylindrical shank for broad spindle compatibility

Compatibility

Designed for use with the E45X toolholder style and X/Q/SOMT 06 series inserts. Intended for use on machining centers and milling machines accepting a 12 millimeter cylindrical shank.

Installation Notes

Installation and tool changes should be performed by a qualified CNC machinist or tooling technician with the machine powered down and in an E-stop or locked-out state. Ensure the shank seating surface and collet or chuck bore are clean and free of chips before mounting. Torque the insert clamping screw to the toolholder manufacturer specification found in the ISCAR toolholder documentation. Verify runout with a dial indicator before initiating a cut.
