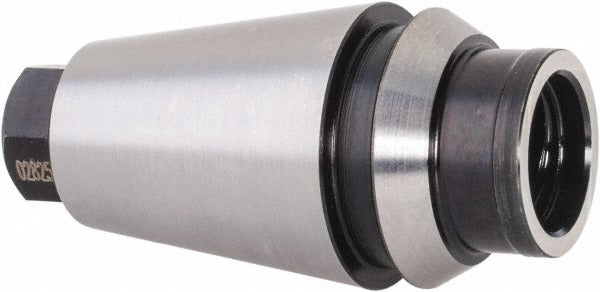

Iscar 3105828 Milling Shank Collet ER16 T08 Multimaster

Product Description

The ISCAR 3105828 is a replaceable tip milling shank from the Multimaster series, designed to accept interchangeable carbide milling tips via a T08 neck thread interface. The shank features a conical body with an ER16 collet-style taper, an overall length of 1.319 inches, and a neck diameter of 0.453 inches. Constructed from solid carbide, it provides the rigidity and vibration resistance required for consistent performance in precision milling operations. This shank is installed by machinists and tool crib technicians working with modular tooling systems on CNC milling machines.

The 3105828 is suited for light to medium milling applications where quick tip changes and repeatable runout are priorities. The ER16 collet taper and T08 thread connection make it compatible with a range of Multimaster milling tip styles across finishing, roughing, and high-feed operations. The 4.00 mm effective cutting length and compact projection keep overhang minimal, supporting stable cuts in tight-clearance setups on vertical and horizontal machining centers.

Key Features

• T08 neck thread for secure, repeatable tip indexing within the Multimaster modular system
• ER16 collet taper shank for use in standard ER16 collet chucks
• Solid carbide construction for high rigidity and reduced deflection
• 0.453 inch neck diameter with conical shank geometry
• Overall length of 1.319 inches keeps projection short for stable milling
• No coolant-through or Weldon flat - optimized for clean collet clamping

Compatibility

Compatible Multimaster milling tip styles include: BCM-MM, HCE-MM, HCM-MM, HP E90AN-MM-07, MM EB, MM EC-4, MM GRIT-K/P-45A, MM HBR, MM HCR, and T290 ELN-MM-05. Catalog reference: MM S-A-H004-ER16-T08.

Installation Notes

Installation is performed by machinists or tooling specialists during CNC machine setup. Secure the shank in a clean, properly sized ER16 collet chuck and torque the collet nut according to the chuck manufacturer's specification. Ensure the T08 neck thread and mating tip are free of chips or contamination before assembly. Inspect the thread interface for wear at regular intervals to maintain runout tolerances.
