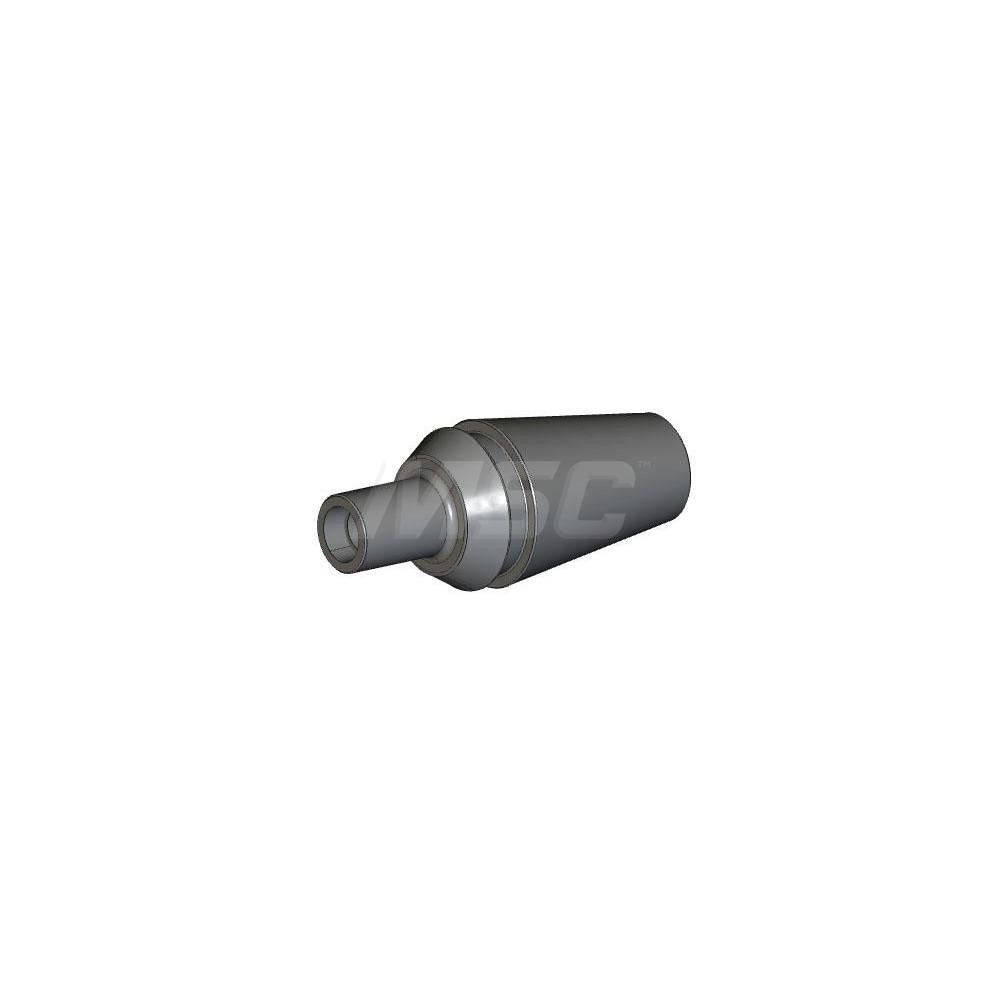

Iscar 3105488 Replaceable Tip Milling Shank ER16

Product Description

The ISCAR 3105488 is a solid carbide replaceable tip milling shank designed for use with the Multimaster modular tooling system. It features a collet shank with an ER16 taper and a T05 neck thread, making it a precision interface between the machine spindle and interchangeable Multimaster milling heads. The overall length is 1.697 inches (43.10 mm), with an effective cutting length of 0.4134 inches (10.50 mm) and a neck diameter of 7.60 mm. This shank is installed by machinists and toolroom technicians working with modular milling setups on CNC machining centers.

This shank is suited for milling applications where quick tip changes and consistent tool projection are required. The MM S-ER toolholder style fits into standard ER16 collet chucks and is compatible with a range of Multimaster tip styles including HP E90AN-MM-07, MM EB, MM EC-4, MM HBR, MM HCR, MM TS-N, R-8 ER, ST-ER, ST-ER-M, and T290 ELN-MM-05. It is commonly used in production milling environments where modularity and repeatability reduce changeover time.

Key Features

• Solid carbide construction for rigidity and vibration resistance
• T05 neck thread interfaces directly with Multimaster replaceable milling heads
• ER16 collet shank taper for use in standard ER collet chucks
• Overall length of 1.697 inches with a head length of 0.410 inches
• No coolant-through design; no Weldon flat on shank
• Conical shank shape for secure seating in ER16 collet

Compatibility

Compatible Multimaster tip styles include HP E90AN-MM-07, MM EB, MM EC-4, MM HBR, MM HCR, MM TS-N, R-8 ER, ST-ER, ST-ER-M, and T290 ELN-MM-05. Designed for use with ER16 collet chucks in the Multimaster modular milling system.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Before mounting, ensure the machine spindle is fully stopped and locked out per shop lockout/tagout procedures. Seat the ER16 shank in a properly sized, clean collet and torque the collet nut to the chuck manufacturer's specification using a calibrated ER collet wrench. Thread the Multimaster tip onto the T05 neck thread by hand until fully seated before engaging any drive torque.
