Iscar 3102118 Square-shoulder Face Mill 2 in HM90

Product Description

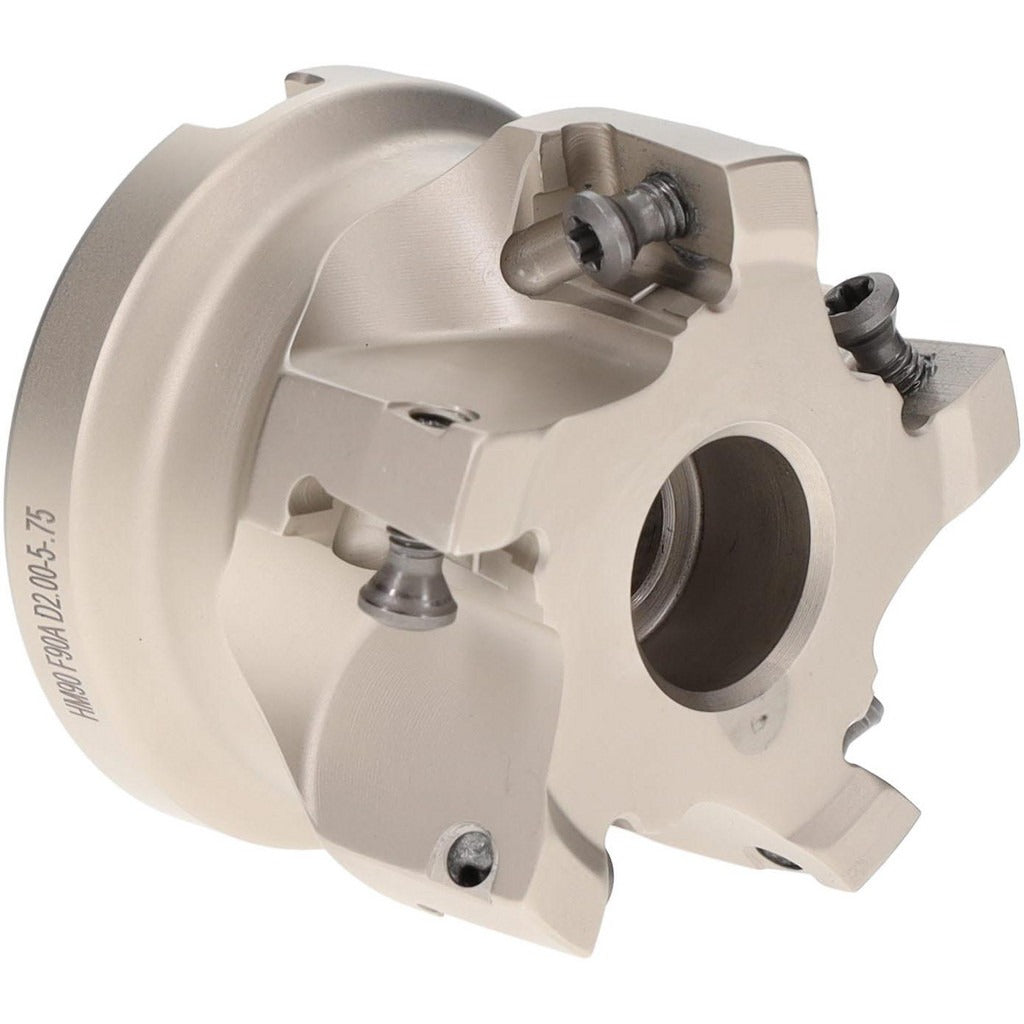

The ISCAR 3102118 is an indexable square-shoulder face mill designed for precision milling operations in metalworking and machining applications. Built to HM90 series specifications, it accepts five AD 1505 style inserts and delivers a 0 degree to 90 degree lead angle for true square-shoulder cuts. The cutter body has a 2 inch maximum cutting diameter and a maximum depth of cut of 0.56 inches, making it well-suited for face milling and shoulder milling on ferrous and non-ferrous materials. Inserts are held by clamp and screw for secure seating under heavy cutting loads. Right-hand cutting direction and ISO-standard compliance make this a reliable choice for production milling environments.

This face mill is intended for use in machining centers, vertical mills, and CNC milling setups where square-shoulder profiling and face milling are required. The 3/4 inch arbor hole diameter and 1.57 inch overall height allow direct mounting on standard arbors and toolholders. With a maximum ramping angle of 2.60 degrees, the cutter supports limited plunge ramping in addition to standard face and shoulder milling passes. It is typically installed and operated by machinists and tooling technicians in job shops, aerospace, automotive, and general manufacturing environments.

Key Features

• 2 inch maximum cutting diameter for face and square-shoulder milling
• Accepts 5 AD 1505 series inserts with clamp and screw holding method
• 0 degree to 90 degree lead angle produces true 90-degree shoulders
• Maximum depth of cut of 0.56 inches per pass
• Maximum ramping angle of 2.60 degrees for ramp-entry toolpaths
• ISO-compliant construction; right-hand cutting direction

Compatibility

Compatible with AD 1505 and HM90 AD 1505 series inserts. Cutter style designation is HM90 F90A-15, catalog number HM90 F90A D2.00-5-.75. Designed for 3/4 inch arbor toolholding systems.

Installation Notes

Installation and tool changes should be performed by qualified machinists with the machine fully powered down and the spindle locked. Ensure the arbor and cutter bore are clean and free of chips before seating the cutter. Insert seating surfaces should be clean and undamaged before torquing clamp screws; follow insert manufacturer torque guidance for the screw type used. Verify correct cutting direction before spindle start-up.
