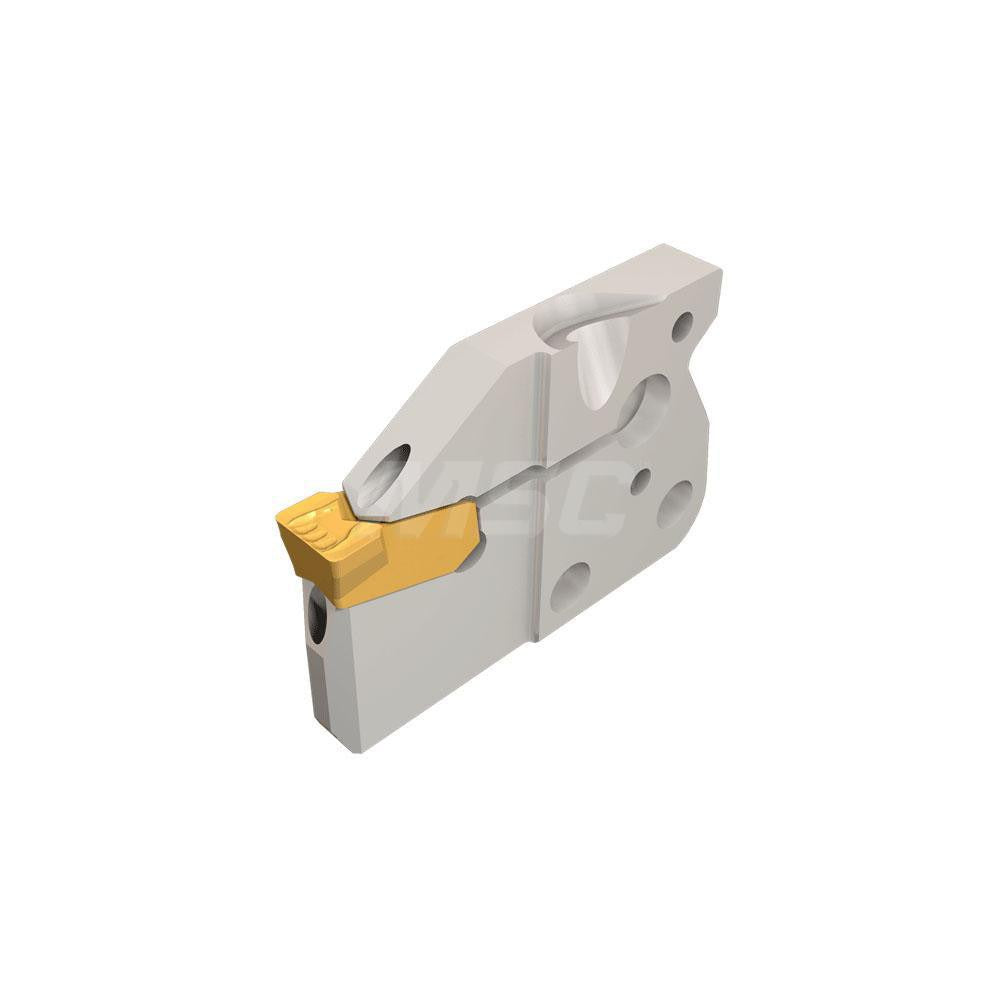

Iscar 2801850 Cutoff Grooving Support Blade Cut Grip

Product Description

The ISCAR 2801850 is a right-hand cutoff and grooving support blade designed for use with indexable inserts in the Cut Grip series. It accepts inserts with a 0.1575-inch (4.00 mm) insert width and delivers a maximum depth of cut of 0.866 inches (22.00 mm). The blade measures 1.878 inches in overall length and 1.299 inches in blade height, with a head length projection of 0.284 inches. This support blade is installed by machinists and toolroom technicians on CNC lathes and turning centers where precise parting and grooving operations are required. Its rigid support geometry helps maintain insert stability during interrupted cuts and deep grooving passes.

The ISCAR 2801850 is suited for parting-off and external grooving applications on CNC turning equipment. The Cut Grip series is a standard platform used in production turning environments handling a range of workpiece materials. This blade is appropriate for both light-production and high-cycle operations where consistent groove geometry and clean cutoff are priorities. The right-hand cutting direction makes it compatible with conventional spindle rotation on most horizontal turning centers.

Key Features

• Right-hand cutting direction for standard spindle rotation on horizontal lathes
• 0.1575-inch (4.00 mm) insert width for precise groove width control
• 0.866-inch (22.00 mm) maximum depth of cut supports parting on medium-diameter workpieces
• 1.878-inch overall blade length fits standard Cut Grip toolholders
• 1.299-inch blade height provides rigidity and support during deep grooving passes
• Industry Standard Number CGPAD 3R-T22-JHP for cross-reference identification

Compatibility

Designed for use with Cut Grip series indexable insert systems. Industry standard number CGPAD 3R-T22-JHP may be used to cross-reference compatible toolholders and inserts within the Cut Grip platform.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the machine spindle is fully stopped and the toolholder is securely locked before seating or removing the support blade. Verify insert clamping torque and blade registration against the toolholder manufacturer specifications before running the first part. Follow the machine tool builder guidelines and applicable shop safety procedures when setting up parting and grooving operations.
