Iscar 2801048 Internal Grooving Toolholder 0.094 in Depth

Product Description

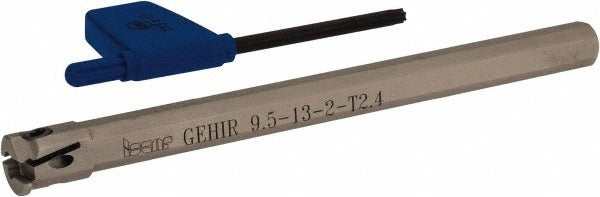

The ISCAR 2801048 is a right-hand internal indexable grooving toolholder in the Cut Grip series, designed for non-face grooving operations on CNC lathes and turning centers. It features a GEHI-style toolholder body with through-coolant capability, supporting groove widths from 0.075 inches to 0.095 inches at a maximum depth of cut of 0.094 inches. The 0.375-inch round shank runs 4.21 inches in length, with an overall length of 5.0 inches. The insert is secured by a clamp-style holding method. This toolholder is installed by CNC machinists and toolroom technicians working with precision internal grooving applications across a universal range of workpiece materials.

The ISCAR 2801048 is suited for internal grooving in bores with a minimum hole diameter of 0.492 inches. It handles universal workpiece materials, covering ISO material groups H, K, M, N, P, and S. Typical applications include snap ring groove machining, undercut grooving, and precision internal profile work on production turning equipment. The through-coolant feature supports both chip evacuation and tool life in deep-bore grooving setups. This toolholder is appropriate for both production and toolroom environments requiring tight groove-width tolerances.

Key Features

• Right-hand cutting direction with GEHI-style non-face grooving body
• Groove width range of 0.075 inches to 0.095 inches with 0.094-inch maximum depth of cut
• Through-coolant design for improved chip control and tool life in internal bore applications
• Clamp-style insert retention compatible with GEMI and GEPI insert families including full-radius and specialty variants
• Minimum hole diameter of 0.492 inches suits small-bore internal grooving work
• Conforms to ISO 13399 tooling data standards for integration with CAM and tool management systems

Compatibility

Compatible insert families include GEMI, GEMI Full Radius, GEPI, GEPI Full Radius, GEPI-MT, and GEPI-WT inserts. The manufacturer cross-reference number is GEHIR/L 9.5-13-2-T2.4. This toolholder is designed for use in CNC turning centers and lathes requiring internal grooving capability across ISO material groups H, K, M, N, P, and S.

Installation Notes

Installation and insert changes should be performed by a qualified CNC machinist or toolroom technician with the machine in a full stop condition and all energy sources locked out per applicable OSHA lockout/tagout procedures. Verify shank clamp torque against the machine tool manufacturer specifications before operation. Through-coolant connections should be confirmed leak-free before running at speed. Do not exceed the maximum depth of cut or minimum bore diameter ratings for this toolholder.
