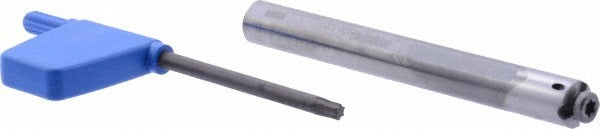

Iscar 2800997 Indexable Grooving Toolholder Mgch 09C

Product Description

The ISCAR 2800997 is a solid carbide indexable grooving toolholder in the ChamGroove series, designed for internal grooving operations on CNC lathes and turning centers. Built to accept GFQR inserts, this toolholder delivers precise, repeatable cutting in a compact body measuring 3.2874 inches in overall length. The through-coolant design channels cutting fluid directly to the insert tip, improving chip evacuation and extending tool life during continuous grooving cycles. It is intended for installation by machinists and CNC tooling technicians working on production or job-shop turning equipment.

The ISCAR 2800997 is suited for universal workpiece materials, including ferrous metals, cast iron, stainless steel, non-ferrous alloys, high-temperature alloys, and hardened materials as indicated by material codes H, K, M, N, P, and S. The minimum bore entry diameter of 0.4720 inches makes it appropriate for small-diameter internal grooving applications where clearance is limited. It is a single-purpose toolholder, not a multi-use body, so it is dedicated to grooving operations with compatible GFQR inserts.

Key Features

• Through-coolant design directs fluid to the cutting zone for improved chip control and thermal management
• Accepts GFQR inserts for consistent, indexable grooving performance
• Solid carbide toolholder body provides rigidity and vibration resistance in small-bore applications
• Minimum hole diameter of 0.4720 inches suits tight-clearance internal grooving setups
• Center to cutting edge distance of 0.2165 inches supports precise depth control
• Part of the ISCAR ChamGroove series for standardized tooling system integration

Compatibility

Designed for use with GFQR series inserts. Compatible insert size code is GFQR. Suitable for universal workpiece materials across material groups H, K, M, N, P, and S.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician familiar with turning center setup procedures. Ensure the machine spindle is fully stopped and all axes are at a safe position before mounting or adjusting the toolholder. Verify coolant line connections are secure and free of obstruction before activating through-coolant flow. Confirm insert seating and clamping torque per the toolholder manufacturer guidelines before initiating a cutting cycle.
