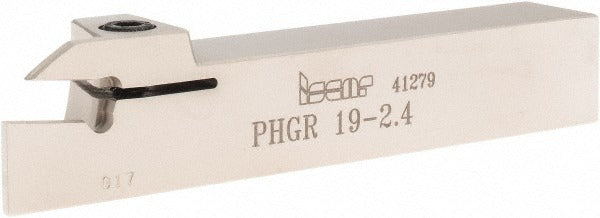

Iscar 2800748 External Grooving Toolholder Phg Cut Grip

Product Description

The ISCAR 2800748 is an external right-hand indexable grooving toolholder designed for precision groove turning on CNC lathes and turning centers. Built to the PHG toolholder style in the Cut Grip series, it accepts GDMW 2.4 inserts secured by a mechanical clamp for reliable edge indexing without disturbing setup. The holder reaches a maximum depth of cut of 0.67 inches and handles groove widths from 0.094 inches up to 0.125 inches (1/8 inch). With an overall length of 4.5 inches and a square 0.75 x 0.75 inch shank, this toolholder suits a wide range of turning machine configurations. It is intended for installation and use by machinists and CNC operators working in production or job-shop environments.

This toolholder is classified for non-face grooving applications with a right-hand cutting direction. It is rated for universal primary workpiece material compatibility, covering material codes H, K, M, N, P, and S, which correspond to hardened materials, cast iron, stainless steel, non-ferrous metals, steel, and heat-resistant superalloys. A maximum workpiece diameter of 1.34 inches and a back-of-bar to cutting edge dimension of 0.71 inches define the usable work envelope. The 1.3 inch head length positions the insert precisely for consistent groove geometry across repeat operations.

Key Features

• Maximum depth of cut: 0.67 inches for deep grooving capability
• Groove width range: 0.094 inches to 0.125 inches (1/8 inch)
• PHG toolholder style in the Cut Grip series for rigid insert clamping
• Compatible insert: GDMW 2.4 held by mechanical clamp
• Square 0.75 x 0.75 inch shank with 3.2 inch shank length
• Universal material compatibility across six ISO material groups
• Conforms to ISO 13399 cutting tool data representation standard

Compatibility

Designed for use with GDMW 2.4 series inserts. Compatible with right-hand external grooving applications on CNC turning machines accepting a 0.75 x 0.75 inch square shank toolholder in the ISCAR Cut Grip PHG series.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Power down the machine and engage all safety interlocks before mounting or removing the toolholder. Ensure the shank bore or toolpost is clean and free of chips before seating the 0.75 x 0.75 inch shank. Index or replace the GDMW 2.4 insert only with the machine stopped and the turret locked in position.
