Iscar 2800152 Grooving Cutoff Toolholder Right Hand

Product Description

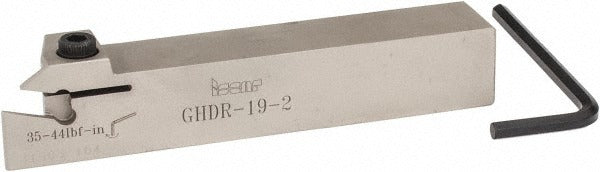

The ISCAR 2800152 is an external, right-hand indexable grooving and cut-off toolholder in the Cut Grip series, designed for precision grooving and parting operations on CNC lathes and turning centers. It accepts a broad range of GI, GPV, and TIP series inserts secured by a clamp-style holding method, providing rigid, repeatable insert positioning. The toolholder handles groove widths from 0.016 to 0.125 inches with a maximum depth of cut of 0.33 inches. The 0.75-inch square shank and 4.5-inch overall length suit standard lathe toolpost and turret setups. Manufactured to ISO 13399 standards for tool data representation.

This toolholder is suited for external grooving and cut-off operations in production turning environments, including job shops and high-volume machining cells. The GHD-style holder is a common choice for machinists working with steel, stainless, aluminum, and other machinable alloys where consistent groove geometry and clean parting cuts are required. The clamp-style insert retention supports quick insert indexing during production runs, reducing downtime at the machine.

Key Features

• Handles groove widths from 0.016 to 0.125 inches for fine grooving through standard parting work
• Maximum depth of cut of 0.33 inches suits a wide range of external cut-off applications
• Clamp-style insert holding method provides secure, repeatable seating for GI, GPV, and TIP series inserts
• 0.75-inch square shank fits standard lathe turret and toolpost pockets
• 4.5-inch overall length with 1.03-inch head length for reach and rigidity balance
• Conforms to ISO 13399 tooling data standards for integration with CAM and tool management systems

Compatibility

Compatible with GI, GPV, and TIP series inserts, including the following insert size codes: GIA-K, GIG, GIM-C, GIM-J, GIM-J-RA/LA, GIM-UT-RA/LA, GIM-W, GIM-W-RA/LA, GIMN, GIMT, GIMY, GIMY-F, GIP, GIP (flat top W), GIP (full radius W), GIP-E, GIP-UN, GIPA, GIPM-A46 / GIP-1250, GIPY, GITM, GPV, TIP-MT, TIP-P-BSPT, TIP-P-BSW, TIP-P-ISO, and TIP-P-NPT. MSC/Manufacturer reference: GHDR/L 19-2.

Installation Notes

Installation and setup should be performed by a qualified machinist or CNC tooling technician. Shut down the machine spindle and engage all machine locks before mounting or changing the toolholder. Verify shank pocket dimensions match the 0.75-inch square shank before installation to ensure proper seating and clamping force. Follow the insert manufacturer torque and clamping guidelines when seating GI, GPV, or TIP series inserts in the holder pocket.
