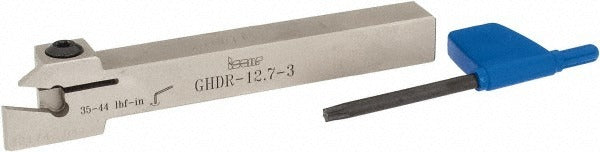

Iscar 2800142 Grooving Cutoff Toolholder Right Hand

Product Description

The ISCAR 2800142 is an indexable grooving and cutoff toolholder in the Cut Grip series, designed for external turning operations on CNC lathes and turning centers. The holder accepts GI, GPV, and TIP series inserts secured by a clamp-style holding method. It features a 0.5 inch square shank, an overall length of 4.5 inches, and a head length of 1.03 inches. Groove width range is 0.11 to 0.157 inches, with a maximum depth of cut of 0.33 inches. This is a right-hand holder intended for production environments where consistent grooving and parting performance is required. Licensed machinists and CNC operators are the typical end users.

This toolholder is suited for external grooving and cutoff applications on ferrous and non-ferrous workpieces in both production and job-shop environments. The GHD-style holder geometry positions the insert for repeatable depth control during parting and shallow-groove operations. No coolant-through capability is present on this model, making it appropriate for setups where flood or mist cooling is delivered externally. The compact head length of 1.03 inches helps reduce overhang-related vibration in tight turret configurations.

Key Features

• External grooving and cutoff application with right-hand cutting orientation
• Groove width range of 0.11 to 0.157 inches accommodates narrow parting and grooving inserts
• Maximum depth of cut of 0.33 inches for shallow-groove and cutoff work
• Clamp-style insert holding method for rigid, repeatable insert seating
• Compatible with GI, GPV, and TIP series insert families including threaded-profile and standard grooving geometries
• Conforms to ISO 13399 tooling data standards for seamless CAM and presetter integration

Compatibility

Compatible insert size codes include GIA-K, GIG, GIM-C, GIM-J, GIM-J-RA/LA, GIM-UT-RA/LA, GIM-W, GIM-W-RA/LA, GIMN, GIMT, GIMY, GIMY-F, GIP, GIP flat top W, GIP full radius W, GIP-E, GIP-UN, GIPA, GIPM-A46 / GIP-1250, GIPY, GITM, GPV, TIP-MT, TIP-P-BSPT, TIP-P-BSW, TIP-P-ISO, and TIP-P-NPT. Full-radius insert styles are not supported by this holder.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician with the machine powered down and the turret locked out before mounting. The 0.5 inch square shank should be seated fully in the turret pocket and torqued to the machine manufacturer's specified clamp value. Verify insert seating and clamp engagement before taking a test cut. Do not exceed the rated maximum depth of cut of 0.33 inches, as overloading a grooving holder can cause insert breakage or shank deflection.
