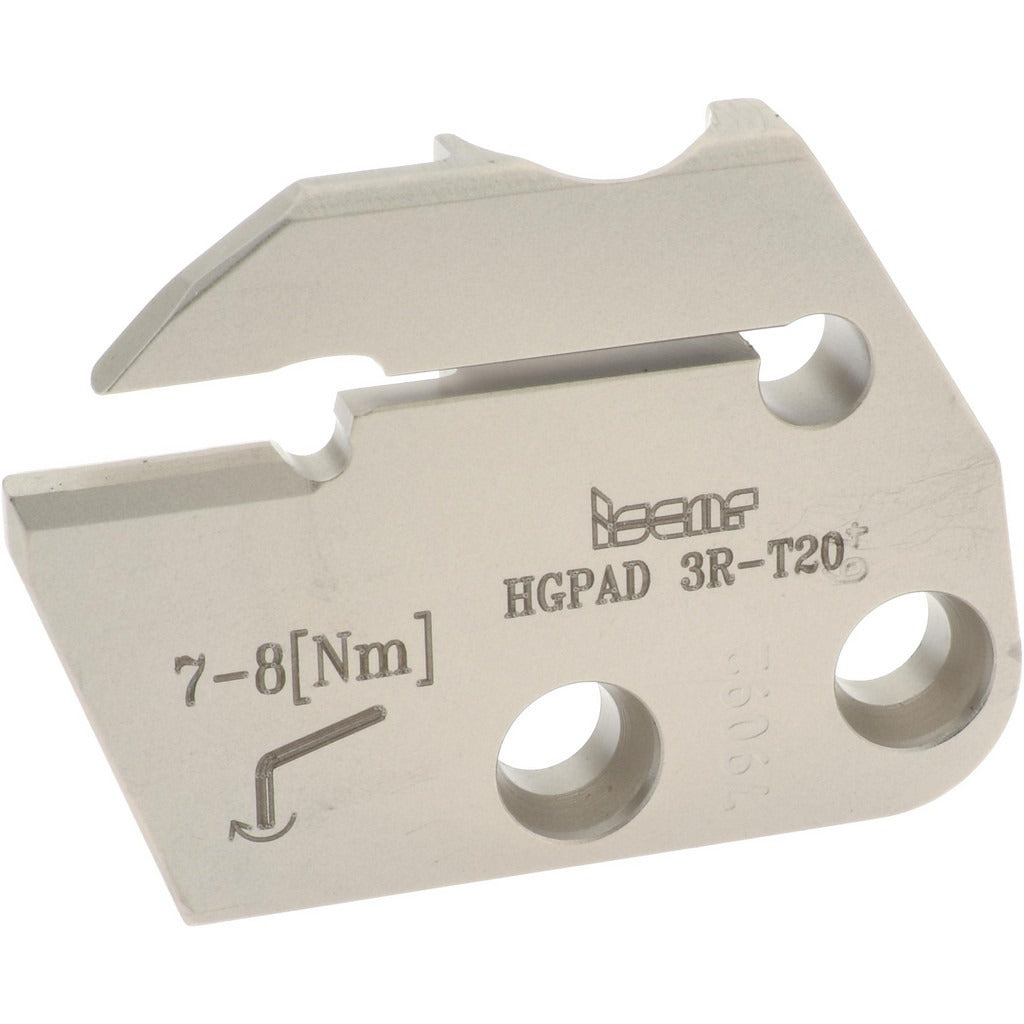

Iscar 2550153 Cutoff Grooving Support Blade Right Hand

Product Description

The ISCAR 2550153 is a right-hand cutoff and grooving support blade designed for use with indexable inserts in the Heli Modular Grip series. It accepts a 3.00 mm (0.1181 inches) wide insert and provides a maximum depth of cut of 20.00 mm (0.7874 inches). The blade measures 1.2600 inches in height and 1.7990 inches in overall length, with a head length projection of 0.2362 inches. Weighing 0.5 pounds, this blade provides rigid support for parting and grooving operations on CNC lathes and turning centers. Installation and tooling changes are handled by machinists and CNC tooling technicians working in production or job-shop environments.

The 2550153 is suited for cutoff and grooving applications on turning equipment where indexable insert tooling systems are used. The Heli Modular Grip series design enables repeatable insert positioning and supports consistent groove width and depth control. This blade is appropriate for use on CNC lathes handling ferrous and non-ferrous workpieces where a right-hand cutting direction is required. The compact head projection makes it compatible with tight-clearance setups on Swiss-type or standard turning centers.

Key Features

• Right-hand cutting direction for standard turning center setups
• Accepts 0.1181 inch (3.00 mm) wide indexable inserts
• Maximum depth of cut: 0.7874 inches (20.00 mm)
• Blade overall length of 1.7990 inches with 0.2362 inch head length projection
• Part of the Heli Modular Grip series for repeatable insert clamping
• Blade height of 1.2600 inches (32.00 mm) for stable tool block mounting

Compatibility

Designed for use with indexable grooving and cutoff inserts in the ISCAR Heli Modular Grip series tooling system. Consult ISCAR tooling documentation to confirm compatible insert grades and geometries for this blade.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the turning center before seating or changing the blade or insert. Verify that the blade is fully seated in the modular grip toolholder and that all clamping components are secured before resuming operation. Follow the machine tool manufacturer and ISCAR tooling assembly guidelines for proper torque and seating procedures.
