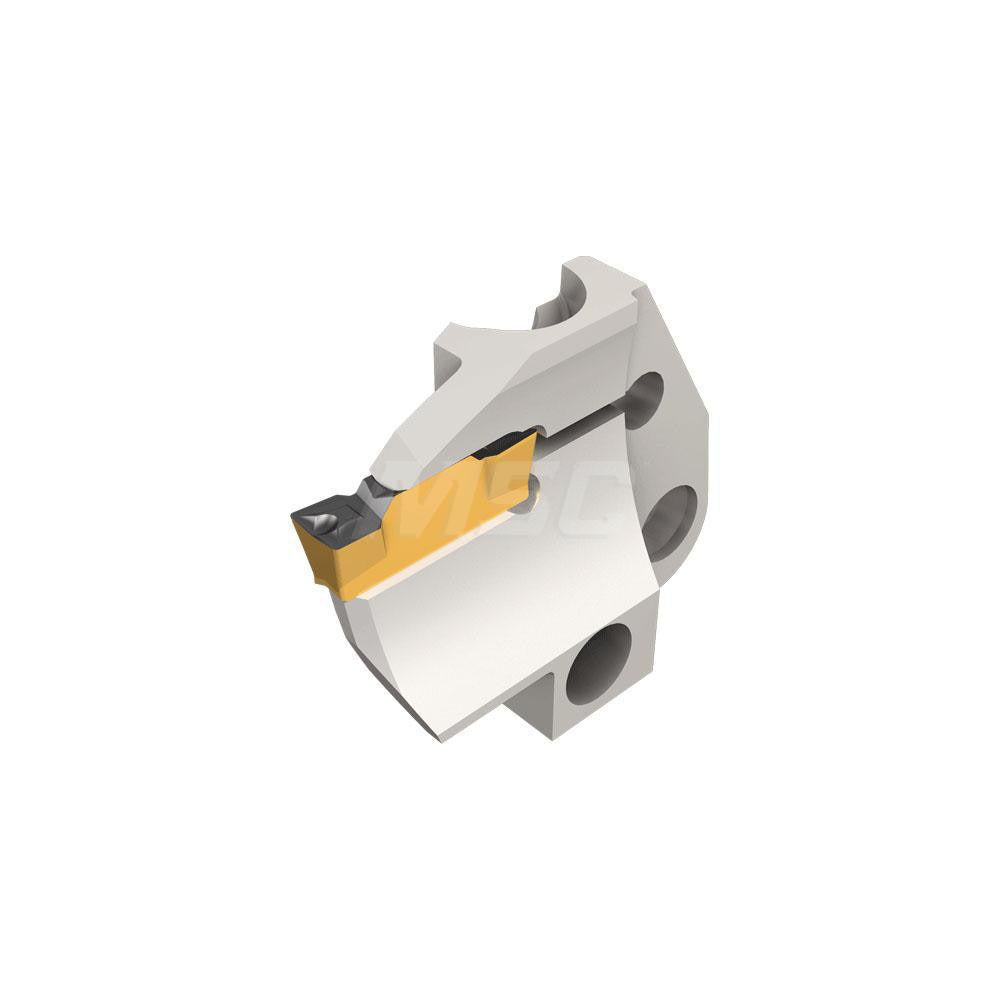

Iscar 2550139 Indexable Grooving Blade Left Hand

Product Description

The ISCAR 2550139 is an indexable grooving blade designed for grooving, parting, and turning operations on CNC lathes and turning centers. Part of the Modular Grip series, this left-hand blade measures 1.2598 inches in height and 0.2480 inches in width, with an overall length of 1.5945 inches. It accepts HFPR/L style inserts and delivers a maximum depth of cut of 0.5512 inches. Machinists and tooling specialists working with small-diameter workpieces will find this blade well-suited to precision grooving applications where tight dimensional control is required. The blade conforms to ISO 13399 tooling data standards.

This blade is intended for use in applications involving workpieces with a minimum diameter of 1.5748 inches and a maximum diameter of 1.9685 inches. It is suited to both production and job-shop environments where small-bore grooving and parting are common operations. The left-hand cutting direction makes it appropriate for specific spindle orientations and toolpost configurations. Typical installers include CNC machinists and tooling setup technicians working with turning centers equipped for modular grip tooling systems.

Key Features

• Left-hand cutting direction for compatible spindle and toolpost setups
• Blade style HFPAD within the Modular Grip series for secure, repeatable insert seating
• Accepts HFPR/L inserts for grooving, parting, and turning operations
• Maximum depth of cut of 0.5512 inches supports a range of groove depths
• Minimum groove width of 0.1969 inches enables precise, narrow-groove work
• Conforms to ISO 13399 tooling data standards for integration with CAM and tool management systems

Compatibility

Designed to accept HFPR/L style inserts as part of the ISCAR Modular Grip series. Compatible with workpieces ranging from 1.5748 inches to 1.9685 inches in diameter.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician familiar with indexable turning toolholders. Ensure the machine spindle is fully stopped and the turret is in a safe index position before mounting or adjusting the blade. Follow the toolholder manufacturer torque and clamping guidelines for the Modular Grip interface. Verify insert style and cutting direction orientation before beginning any grooving or parting operation.
