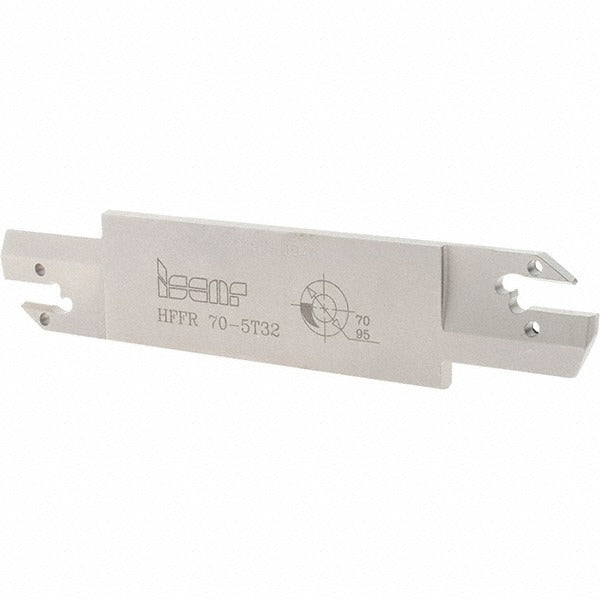

Iscar 2500352 Indexable Grooving Blade Right Hand

Product Description

The ISCAR 2500352 is a right-hand indexable grooving blade from the Heliface series, designed for grooving, parting, and turning operations on CNC lathes and turning centers. The blade measures 1.2598 inches in height and 5.9055 inches in overall length, with a blade width of 0.2047 inches. It accepts HFPR/L 5004 series inserts and delivers a maximum depth of cut of 1.2598 inches. The HFF blade style is suited for precision grooving work on medium-diameter workpieces. Licensed machinists and CNC tooling specialists are the primary users of this toolholder component.

This grooving blade is intended for external grooving, parting, and turning applications on workpieces ranging from 2.7559 inches to 3.7402 inches in diameter. The right-hand cutting direction suits standard lathe setups. It is a fit for production turning environments where repeatable groove geometry and secure insert clamping are required. The Heliface series is built for insert indexing efficiency, reducing changeover time during high-run operations.

Key Features

• Right-hand cutting direction for standard lathe orientation
• HFF blade style with 1.2598 inch blade height and maximum depth of cut
• Overall length of 5.9055 inches for rigid toolholder reach
• Compatible with HFPR/L 5004 series indexable inserts
• Workpiece diameter range of 2.7559 to 3.7402 inches
• Meets ISO 13399 tooling data standards

Compatibility

Designed for use with HFPR/L 5004 series inserts. Compatible insert size code is 5004. Part of the ISCAR Heliface series tooling system.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and the lathe is powered down before mounting or removing the blade. Secure the blade in the toolholder to the toolholder manufacturer's clamping specifications using appropriate torque tooling. Verify insert seating and blade alignment before resuming cutting operations.
