Iscar 2500255 Face Grooving Toolholder Right Hand

Product Description

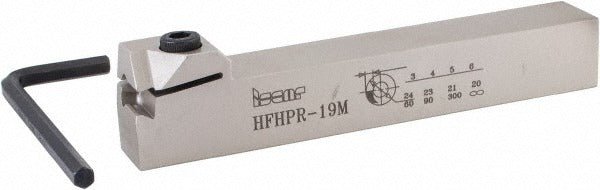

The ISCAR 2500255 is a right-hand face grooving indexable toolholder in the Heliface series, designed for precision groove cutting operations on a lathe or turning center. It accepts HFPR-style inserts and uses a mechanical clamp to secure the insert during cut. The toolholder accommodates a maximum depth of cut of 0.197 inches and a minimum groove width of 0.118 inches, with a maximum groove width of 0.236 inches. The 0.75 x 0.75 inch square shank and 5-inch overall length make it a compact, rigid tool suited for tight-tolerance face grooving work. Licensed machinists and CNC turning specialists are the primary users of this toolholder.

This toolholder is intended for face grooving applications on both internal and external features. It is compatible with a broad range of workpiece materials coded H, K, M, N, P, and S, covering cast iron, non-ferrous, stainless, steel, and heat-resistant alloys. The minimum axial groove inside diameter is 0.95 inches, and the maximum groove outside diameter is 78.74 inches, giving this tool a wide working range. The back-of-bar to cutting edge dimension is 0.96 inches, and the head height is 1.10 inches. It does not include through-coolant capability.

Key Features

• Right-hand HFHP-style face grooving toolholder in the Heliface series
• Maximum depth of cut: 0.197 inches; groove width range: 0.118 to 0.236 inches
• 0.75 x 0.75 inch square shank with 5-inch overall length for rigid setup
• Clamp-style insert retention for secure, repeatable insert indexing
• Compatible with universal workpiece materials including steel, stainless, cast iron, and non-ferrous alloys
• Minimum axial groove inside diameter of 0.95 inches allows use on small-bore internal features

Compatibility

Compatible inserts include HFPR 3003, HFPR 3015, HFPR 4004, HFPR 4020, HFPR 5004, HFPR 5025, HFPR 6004, and HFPR 6030 from the DGN and GRIP 4-6 insert families. This toolholder uses the HFPR insert compatibility class.

Installation Notes

Installation should be performed by a qualified machinist with the machine fully powered down and the spindle locked before toolholder mounting or insert indexing. Secure the shank in a properly sized tool block or turret station and confirm insert seating and clamp engagement before returning the machine to operation. Follow the machine tool manufacturer guidelines for tool overhang and clamping torque. Always wear appropriate PPE when handling indexable inserts.
