Iscar 2302860 Indexable Cutoff Blade Double End Neutral

Product Description

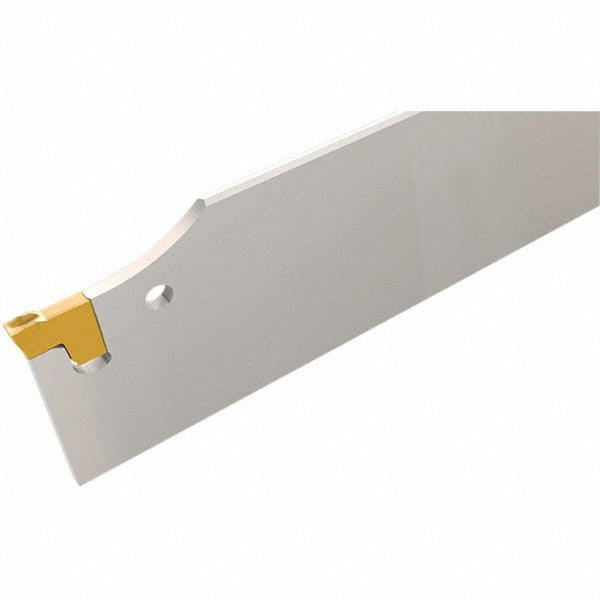

The ISCAR 2302860 is a double-end neutral indexable cutoff and grooving blade from the JetHPLine Tang-Grip series. It measures 1.02 inches (25.91 mm) in blade height, 0.51 inches (12.95 mm) in blade width, and 4.331 inches (110.01 mm) in overall length. The blade accepts TAG-style inserts with a 1.6 mm insert width and uses a self-grip insert holding method. It is designed for grooving, parting, and turning operations on CNC lathes and turning centers. Machinists and tool-crib technicians working in production turning environments are the primary users. The double-end design allows both ends to be used before the blade is replaced, extending tool life and reducing per-part tooling cost.

This blade is suited for grooving, parting, and turning applications on workpieces up to 1.38 inches in maximum diameter. It fits into TGTBU JHP-style tool blocks and is compatible with a range of modular toolholding systems. The JetHPLine series is intended for high-productivity CNC turning operations in both job-shop and high-volume production environments. The neutral cutting direction makes it appropriate for standard right-to-left feed directions on a conventional lathe turret. CNC machinists and tooling specialists installing this blade should verify tool block compatibility before mounting.

Key Features

• Double-end design allows use of both cutting ends, extending blade service life
• Accepts TAG N1.6C and TAG N1.6J inserts with a 1.60 mm insert width
• Self-grip insert holding method secures the insert without additional fasteners
• Cutting height of 0.843 inches (21.41 mm) supports parting and grooving to depth
• Compatible with a wide range of SGTB and modular HSK toolblock styles
• Conforms to ISO 13399 tooling data standards for CAM and tooling management integration

Compatibility

Compatible inserts: TAG N1.6C and TAG N1.6J. Compatible tool blocks include: C6 TBK-32L, C6 TBK-32R, C8 TBK-32R, C8 TBK-52R, HSK A100WH-TBK-32L, HSK A100WH-TBK-52L, HSK A63WH-TBK-32L, HSK A63WH-TBK-32R, SGTBL 25-6, SGTBN 16-2, SGTBR 19-2, SGTBR 25-6, SGTBU 16-5G, SGTBU 19-5G, SGTBU 19-6G, SGTBU 25.4-5G, and SGTBU 25.4-6G. Tool block style is TGTBU JHP. Insert seat size is 1.3.

Installation Notes

Installation is performed by a qualified CNC machinist or toolroom technician. Before changing the blade or insert, shut down the spindle completely and verify the machine is in an e-stop or locked-out state per your facility lockout/tagout procedure. Confirm tool block compatibility and torque all clamping components to the tool block manufacturer specifications before resuming cuts. Do not exceed the maximum workpiece diameter of 1.38 inches for parting operations.
