Iscar 2301900 Grooving Cutoff Toolholder Right Hand

Product Description

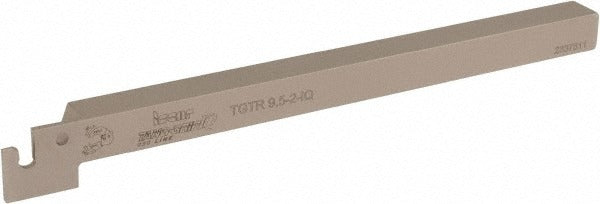

The ISCAR 2301900 is a right-hand indexable grooving and cutoff toolholder from the Tang-Grip series, designed for external grooving and parting operations on CNC lathes and turning centers. It accepts TAG 2 inserts secured by a clamp-style holding method, supporting groove widths from 1.8 to 2.5 mm and a maximum depth of cut of 14 mm. The shank measures 0.375 inches square, and the overall length is 5.906 inches (150 mm). This toolholder is intended for use by machinists and CNC turning technicians in production and job-shop environments.

This toolholder suits external grooving and cutoff applications on small to mid-size turned components where precise groove width control is required. The Tang-Grip clamping system provides rigid insert seating, which is important for maintaining dimensional accuracy during parting and profile grooving. It is commonly applied in industries such as automotive, aerospace, and general precision machining where repeatable groove geometry is critical. No coolant-through capability is present on this holder.

Key Features

• Right-hand Tang-Grip series toolholder for external grooving and cutoff operations
• Accepts TAG 2 inserts with clamp-style insert holding for rigid, repeatable seating
• Groove width range of 1.8 to 2.5 mm (0.071 to 0.098 inches) for fine grooving work
• Maximum depth of cut of 14 mm (0.551 inches)
• Square shank measuring 0.375 inches by 0.375 inches for standard toolpost mounting
• Compliant with ISO 13399 cutting tool data representation standards

Compatibility

Compatible insert codes include TAG N-A, TAG N-C/W/M, TAG N-J/JS/JT, TAG N-LF, TAG N-UT, TAG R/L-C, and TAG R/L-J/JS inserts sized for TAG 2. Designed as an OEM-style replacement or direct-fit toolholder for Tang-Grip series setups using TAG 2 inserts.

Installation Notes
