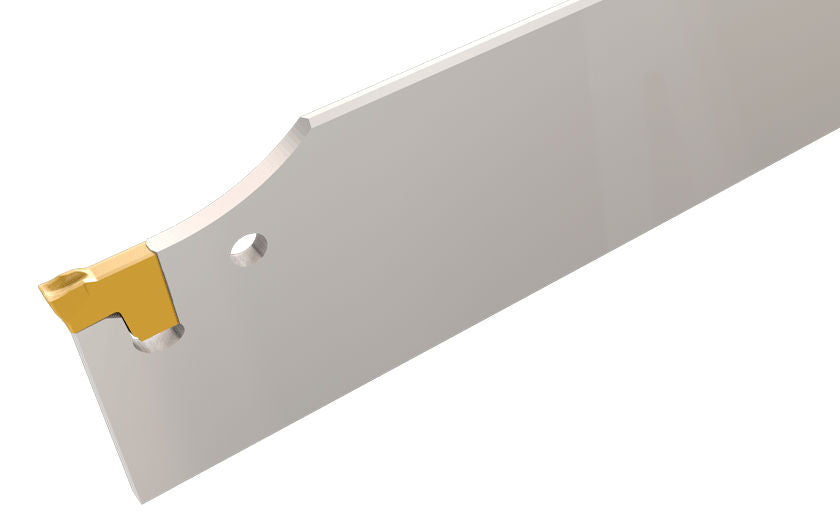

Iscar 2301765 TGFH-26-4 Blade

Product Description

The Iscar TGFH-26-4 Blade, MPN 2301765, is designed for precision cutting. This blade is suitable for various turning applications. It is used with L-shape inserts for effective grooving and cut-off operations.

• Blade height measures one point zero two four inches.
• Compatible with insert widths ranging from zero point one four six inches to zero point one seven seven inches.
• Effective maximum cut depth of three point one five inches.

Product Highlights

The Iscar TGFH-26-4 Blade is engineered for durability and performance. It is a reliable option for professionals needing efficient material removal.

Product Information

Standard Information

• Brand: Iscar
• Part Number: TGFH-26-4

Technical Specifications

• Blade Height: 1.0240 inches
• Blade Width: 0.1340 inches
• Base Length: 4.3310 inches
• Min. Insert Width: 0.1460 inches
• Max. Insert Width: 0.1770 inches
• Max. Cut: 3.1500 inches
• Coolant: No
• Direction: Neutral
