Iscar 2301532 Grooving Cutoff Toolholder Left Hand

Product Description

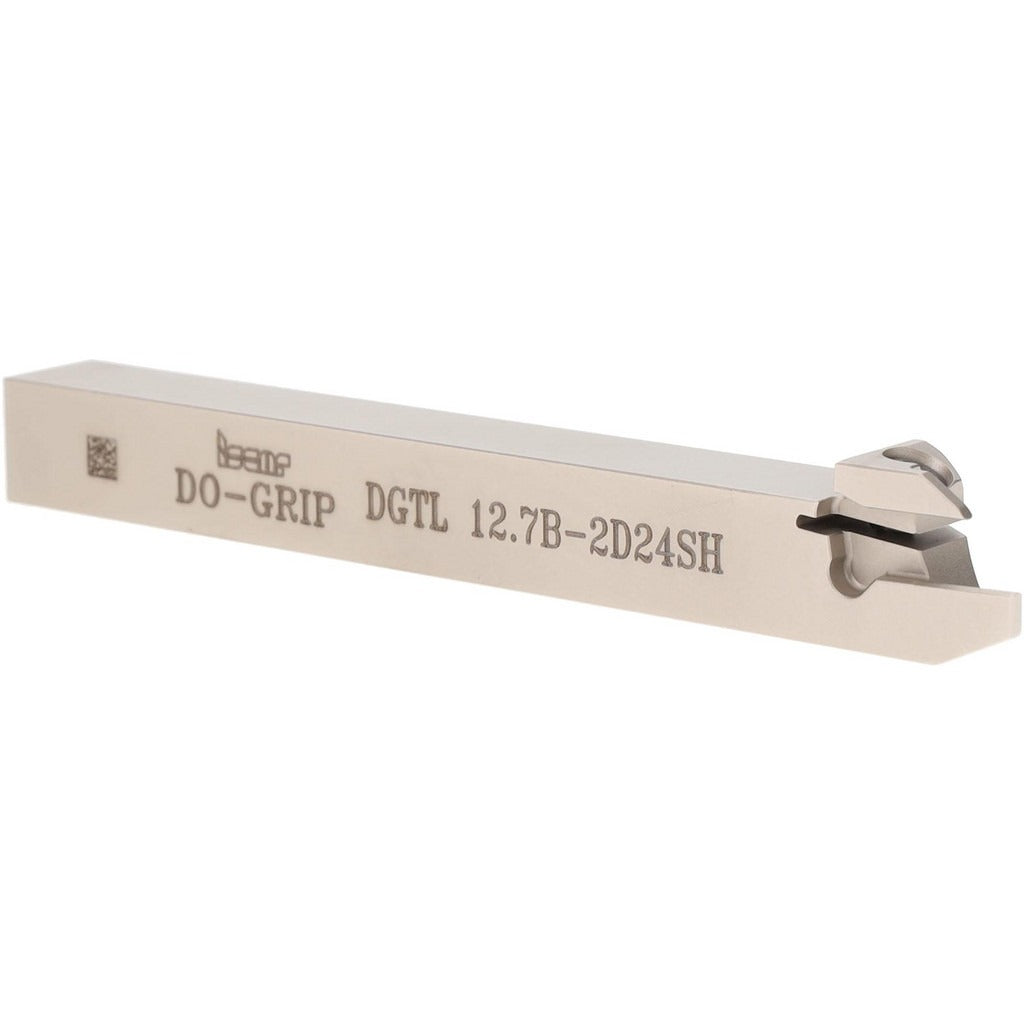

The ISCAR 2301532 is a left-hand indexable grooving and cut-off toolholder in the Do Grip series, designed for external turning operations on CNC lathes and turning centers. It accepts DG. 1.. and DG. 2.. series inserts held by a clamp-style clamping mechanism, providing rigid insert retention under interrupted and continuous cutting conditions. Groove width range is 0.075 to 0.098 inches, with a maximum depth of cut of 0.95 mm. The shank is square at 0.5 inches by 0.5 inches with a shank length of 3.95 inches, and the overall toolholder length is 4.7 inches. This holder is intended for machinists and toolroom personnel performing precision grooving and parting operations.

This toolholder is suited for external grooving and cut-off applications in production and job-shop turning environments, including both conventional and CNC lathes equipped with a standard 0.5-inch square shank tool post or turret station. It is particularly applicable where left-hand orientation is required by the machine setup or workpiece approach direction. The Do Grip system is optimized for narrow-width groove profiles and parting operations where accurate groove width control is critical. Coolant-through capability is not included in this holder.

Key Features

• Left-hand orientation for machines or setups requiring approach from the left
• Clamp-style insert holding method for secure, repeatable insert seating
• Groove width range of 0.075 to 0.098 inches accommodates multiple DG insert widths
• 0.5 inch by 0.5 inch square shank fits standard tool post and turret stations
• Overall length of 4.7 inches with a head length of 0.75 inches and head height of 0.65 inches
• Conforms to ISO 13399 cutting tool data representation standards

Compatibility

Compatible with DG. 1.. and DG. 2.. series inserts. Compatible insert size codes are DGN/DGNM-J/JS/JT and DGR/L-J/JS. Full radius inserts are not compatible with this holder.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the machine spindle is fully stopped and the machine is locked out before changing or setting the toolholder in the turret or tool post. Secure the shank to the specified clamping torque of the machine tool manufacturer for 0.5-inch square shank toolholders. Verify insert seating and clamp engagement before resuming cutting operations.
