Iscar 2301426 Grooving Cutoff Toolholder Left Hand

Product Description

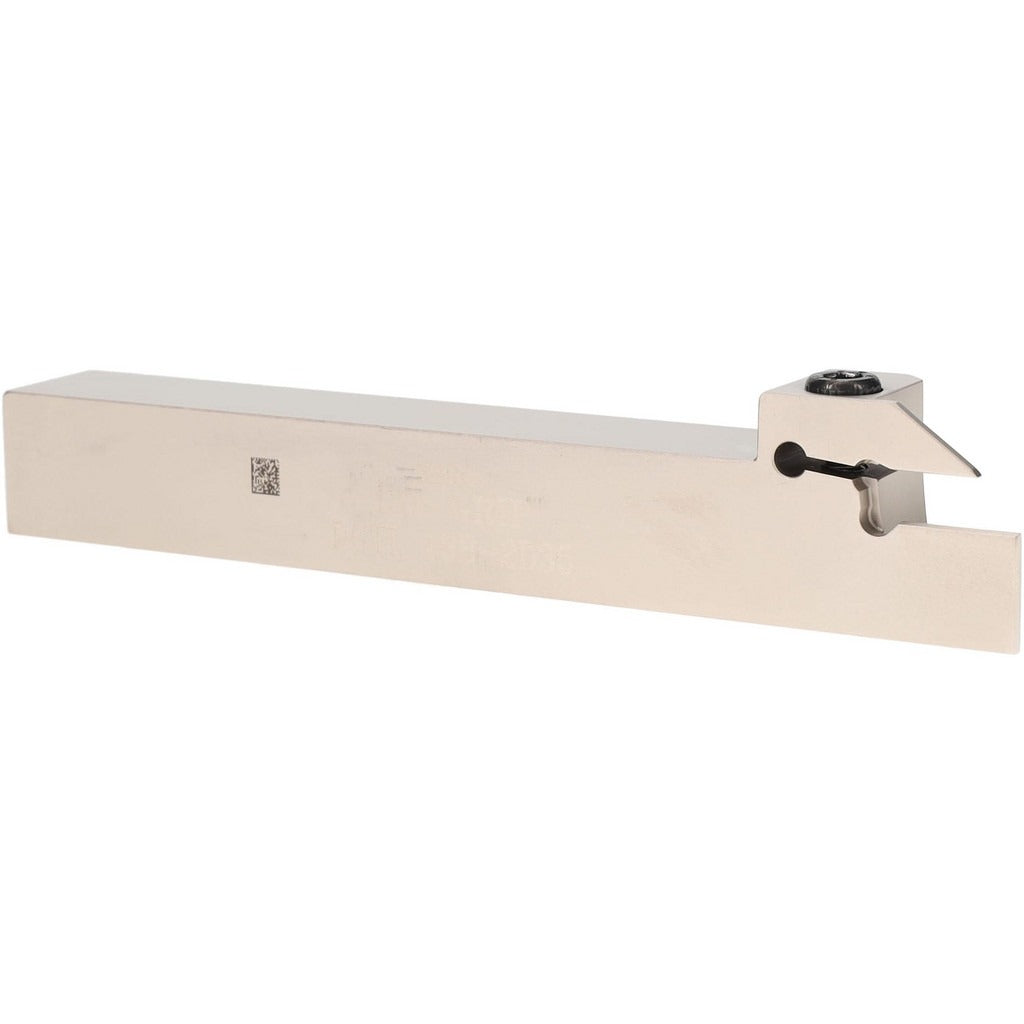

The ISCAR 2301426 is a left-hand indexable grooving and cutoff toolholder in the Do Grip series, designed for precision groove machining and part cutoff operations on CNC lathes and turning centers. It accepts DG. 1.. and DG. 2.. series inserts secured by a clamp-style holding method, providing rigid, repeatable insert positioning. The toolholder accommodates a groove width range of 0.075 to 0.098 inches and delivers a maximum depth of cut of 0.689 inches. With a shank height and width of 0.750 inches and an overall length of 5.500 inches, this holder fits standard square-shank toolpost and turret positions common in production turning environments.

This toolholder is suited for external grooving, undercutting, and cutoff applications in both job shop and production turning settings. The left-hand orientation positions it for specific turret stations or part configurations where a right-hand holder would interfere. It is designed for use with ferrous and non-ferrous workpiece materials where controlled groove width and depth are required. Machinists and CNC setup technicians in precision machining shops are the primary installers and users of this toolholder.

Key Features

• Left-hand toolholder orientation for turret or toolpost stations requiring left-hand approach
• Groove width range of 0.075 to 0.098 inches for narrow-groove and cutoff work
• Maximum depth of cut of 0.689 inches for external groove and parting operations
• Clamp-style insert holding method for secure, repeatable insert seating
• Compatible with DG. 1.. and DG. 2.. series inserts in the Do Grip system
• Conforms to ISO 13399 cutting tool data representation standards

Compatibility

Compatible with DGN/DGNM-J/JS/JT and DGR/L-J/JS insert size codes. Accepts DG. 1.. and DG. 2.. series inserts. Part of the ISCAR Do Grip toolholder series.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and the turret or toolpost is in a safe, indexed position before mounting or removing the toolholder. Verify the shank bore and toolpost slot match the 0.750-inch shank dimensions before tightening. Insert clamping screws should be tightened with the appropriate torx or hex key per the insert manufacturer tooling guidelines; do not overtighten.
