Iscar 2301423 Grooving Cutoff Toolholder Right Hand

Product Description

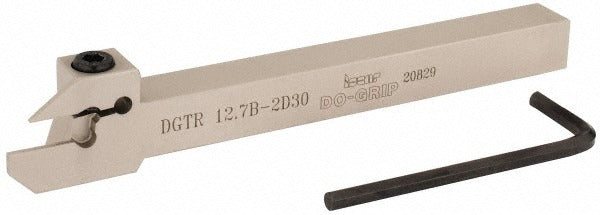

The ISCAR 2301423 is a right-hand indexable grooving and cutoff toolholder from the Do Grip series, designed for use on CNC lathes and turning centers. It accepts DG. 1.. and DG. 2.. series insert styles, secured by a clamp-style holding method for rigid, repeatable positioning. The toolholder handles groove widths from 0.075 to 0.098 inches and a maximum depth of cut of 0.591 inches. With a 0.500-inch square shank and an overall length of 5.500 inches, this holder fits standard OD turning and parting setups. It conforms to ISO 13399 tooling data standards, making it compatible with modern CAM and tool management systems.

This toolholder is suited for OD grooving and cutoff operations in production turning environments, including both small-batch and high-volume applications. The compact 0.500-inch shank height and 4.330-inch shank length fit a wide range of turret and block-style toolposts common in CNC turning. It is well matched to applications requiring narrow groove profiles in steel, stainless, aluminum, and similar machinable materials. Machinists and CNC operators working in job shops or production facilities will find this holder straightforward to set up and index.

Key Features

• Groove width range: 0.075 to 0.098 inches for narrow-profile grooving and parting
• Maximum depth of cut: 0.591 inches for cutoff and deep grooving work
• Clamp-style insert retention provides secure, vibration-resistant holding
• Compatible with DG. 1.. and DG. 2.. series inserts, including DGN/DGNM-J/JS/JT and DGR/L-J/JS styles
• Right-hand cutting orientation for standard OD turning setups
• ISO 13399 compliant for integration with CAM and digital tool management platforms

Compatibility

Designed for use with DG. 1.. and DG. 2.. series inserts, including compatible insert size codes DGN/DGNM-J/JS/JT and DGR/L-J/JS. Part of the ISCAR Do Grip toolholder series. MSC and manufacturer reference number: DGTR/L 12.7B-2D30.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Secure the toolholder in the turret or toolpost according to the machine tool manufacturer torque specifications before indexing inserts. Power down and lock out the machine spindle before changing inserts or adjusting the holder. Confirm proper insert seating and clamp engagement before resuming cutting operations.
