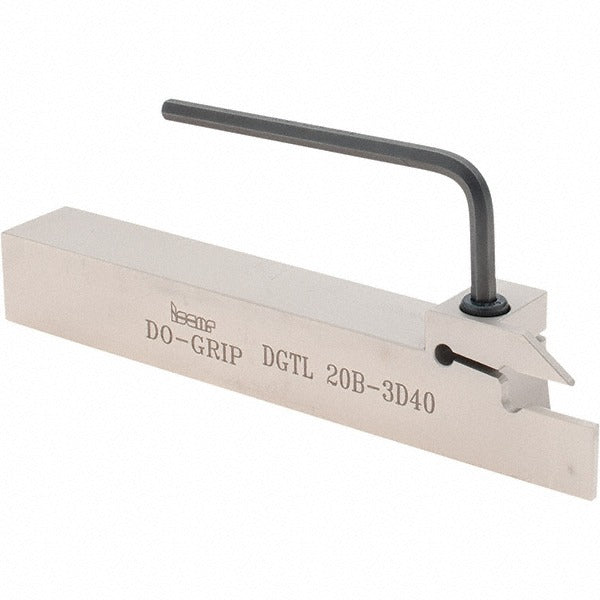

Iscar 2301401 Grooving Cutoff Toolholder Left Hand

Product Description

The ISCAR 2301401 is an indexable grooving and cut-off toolholder from the Do-Grip series, designed for external turning operations on CNC lathes and similar machine tools. It accepts DGN-style inserts using a clamp-style holding method and supports groove widths from 3 to 3.18 mm with a maximum depth of cut of 10 mm. The toolholder features a 20 x 20 mm square shank and an overall length of 140 mm (5.51 inches). This is a left-hand orientation holder. It is installed and used by machinists and toolroom professionals in production and job-shop turning environments.

This toolholder is suited for external grooving and cut-off applications on ferrous and non-ferrous workpieces in both production and job-shop settings. The Do-Grip clamping design provides rigid insert seating, which supports stable cutting performance in grooving operations. The 20 mm shank height and 104.4 mm shank length make it compatible with standard 20 mm boring bar pockets and toolpost holders on small to mid-size CNC and manual lathes. It is not configured for coolant-through delivery.

Key Features

• External grooving and cut-off capability with 3 to 3.18 mm groove width range
• Maximum depth of cut: 10 mm (0.394 inches)
• Clamp-style insert holding for rigid, repeatable insert positioning
• Left-hand holder orientation for standard left-hand turning setups
• 20 x 20 mm square shank for drop-in fit in standard 20 mm toolposts
• Conforms to ISO 13399 cutting tool data representation standard

Compatibility

Compatible inserts include DGN 3000P, DGN 3002Z, DGN 3003UA, DGN 3003UT, DGN 3100JS, DGN 3102C, DGN 3102J, DGN 3102JT, DGN 3202J, DGNC 3102C, DGNM 3202C, and DGNM 3202J. Also accepts inserts coded DGN/DGNM-J/JS/JT and DGR/L-J/JS.

Installation Notes

Installation should be performed by a qualified machinist with the machine powered down and the spindle locked before mounting or removing the toolholder. Ensure the shank is fully seated and clamped to the manufacturer-specified torque using calibrated tooling hardware. Verify insert seating and clamping before resuming cutting operations. Follow applicable shop-floor safety procedures and machine manufacturer guidelines when setting tool offsets and running initial passes.
