Iscar 2301399 Grooving Cutoff Toolholder Left Hand

Product Description

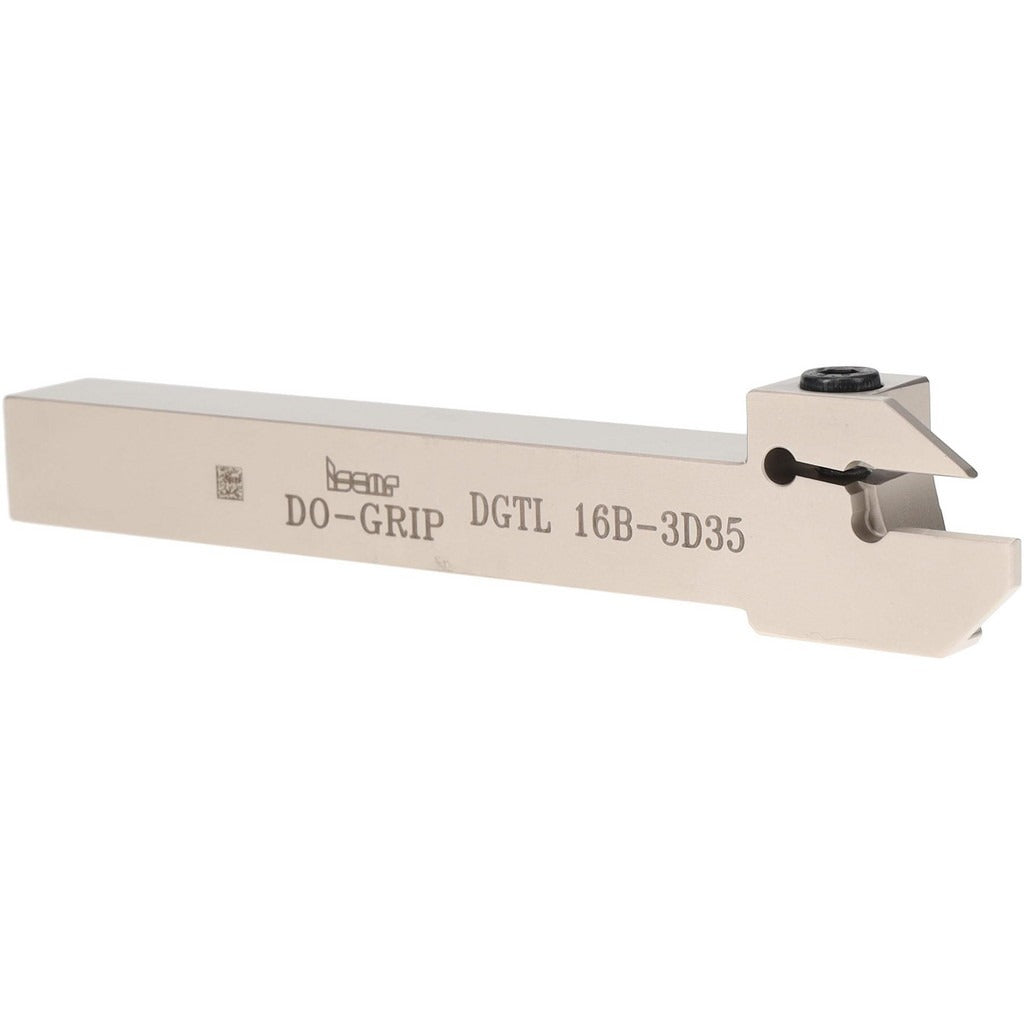

The ISCAR 2301399 is a left-hand indexable grooving and cut-off toolholder from the Do Grip series, designed for precision grooving and parting operations on CNC lathes and turning centers. It accepts DG. 1.. and DG. 3.. series inserts secured by a clamp-style holding method. The toolholder features a 16 x 16 mm square shank and delivers a maximum depth of cut of 16 mm, making it suitable for moderate to deep grooving work. Groove widths range from 3 mm to 3.18 mm. Overall length is 140 mm. This toolholder is installed and set up by machinists and tooling specialists in production and job-shop turning environments.

The 2301399 is intended for grooving and cut-off applications on turned components in both production and general-purpose machining environments. The left-hand orientation suits specific spindle rotation and approach direction requirements on standard CNC lathes. The Do Grip series is engineered for secure insert clamping and consistent radial positioning, which is important in high-cycle grooving operations where insert indexing speed and repeatability matter. The DGT toolholder style is compatible with the DGN, DGNM, DGR, and DGL insert families in the J, JS, and JT seat configurations.

Key Features

• Left-hand holder orientation for specific turning approach directions
• Groove width range of 3 mm to 3.18 mm for precise slot control
• Maximum depth of cut of 16 mm suitable for moderate to deep grooving
• Clamp-style insert holding method for secure, repeatable seating
• 16 x 16 mm square shank for standard toolpost and block mounting
• No coolant-through design; external coolant application applies
• Conforms to ISO 13399 cutting tool data representation standards

Compatibility

Compatible with DG. 1.. and DG. 3.. series inserts. Compatible insert size codes include DGN/DGNM-J/JS/JT and DGR/L-J/JS. Part of the ISCAR Do Grip series toolholder family.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Ensure the machine spindle is fully stopped and the turret or toolpost is locked out before mounting or removing the toolholder. Torque all clamping bolts according to the machine tool manufacturer specifications using calibrated tooling. Verify insert seating and holder alignment before resuming cutting operations.
