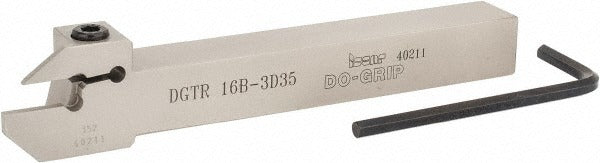

Iscar 2301398 Grooving Cutoff Toolholder Right Hand

Product Description

The ISCAR 2301398 is a right-hand indexable grooving and cutoff toolholder from the Do Grip series, designed for external grooving and parting operations on CNC lathes and turning centers. It accepts DG. 1.. and DG. 3.. series inserts secured by a clamp-style holding method. The toolholder features a square 16 x 16 mm shank with an overall length of 5.5 inches (140 mm) and a maximum depth of cut of 0.63 inches (16 mm). Groove widths from 0.118 inches (3 mm) to 0.125 inches (3.18 mm) are supported. This holder is installed by machinists and toolroom technicians in production and job-shop turning environments.

The ISCAR 2301398 suits external grooving and cutoff applications on ferrous and non-ferrous workpieces where consistent insert indexing and secure clamping are required. The toolholder style is DGT and belongs to the Do Grip product family. It is suited to both production turning and general-purpose parting work on conventional or CNC lathes where a compact square-shank toolholder is appropriate. No coolant-through capability is provided on this model, so external coolant delivery should be used when required by the application.

Key Features

• Right-hand orientation for standard external grooving and cutoff operations
• Clamp-style insert retention for positive insert seating and repeatability
• Accepts DG. 1.. and DG. 3.. series inserts including DGN/DGNM-J/JS/JT and DGR/L-J/JS compatible insert size codes
• 16 x 16 mm square shank fits standard tool blocks and quick-change systems sized for that bore
• Maximum 16 mm depth of cut supports a broad range of grooving and parting depths
• Conforms to ISO 13399 tooling data standards for use with CAM and presetter software

Compatibility

Compatible with DG. 1.. and DG. 3.. series inserts. Insert size codes DGN/DGNM-J/JS/JT and DGR/L-J/JS are directly supported. Designed for use in tool blocks or turrets accepting a 16 x 16 mm square shank.

Installation Notes

Installation is performed by a machinist or toolroom technician. Before mounting, confirm the machine turret or toolblock is powered down and the spindle is locked. Secure the shank fully in the toolblock to the recommended engaged length before tightening clamping screws to avoid overhang deflection. Index or replace inserts only after the machine is stopped and the workpiece is clear.
