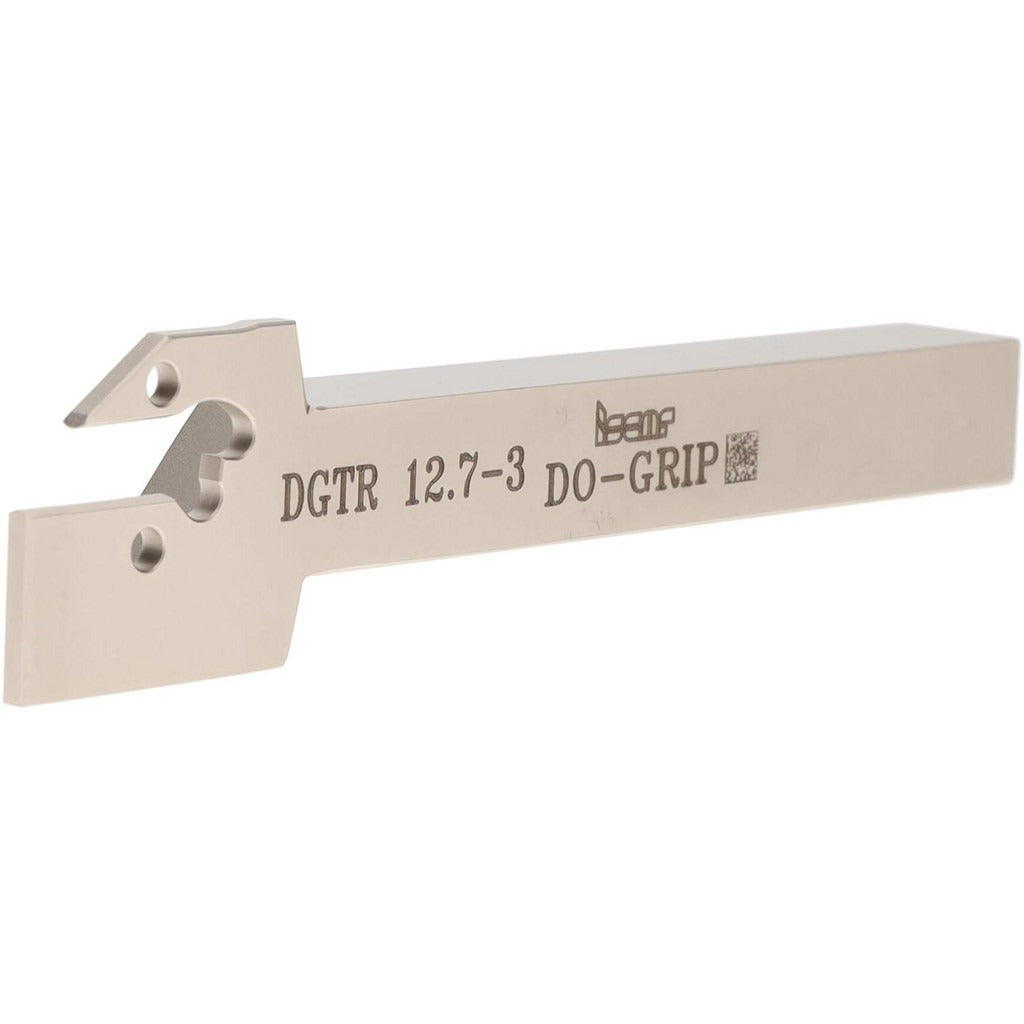

Iscar 2301284 Grooving Cutoff Toolholder Do-grip Right Hand

Product Description

The ISCAR 2301284 is a right-hand indexable grooving and cut-off toolholder from the Do-Grip series, designed for external turning applications on CNC lathes and turning centers. It accepts DG-series clamp-style inserts and supports groove widths from 0.118 inches to 0.125 inches with a maximum depth of cut of 0.69 inches. The toolholder uses a clamp holding method to secure the insert firmly under cutting loads. With a 0.5-inch square shank and an overall length of 4.5 inches, it fits standard turning center tool stations used by machinists and toolroom technicians in production and job-shop environments.

This toolholder is suited for external grooving and parting operations on small-diameter workpieces where tight groove widths and precise depth control are required. It is commonly installed in CNC lathe turrets for production runs involving groove profiles, neck turning, and cut-off work. The Do-Grip series is a well-established ISCAR platform used in high-volume turning applications across metal-cutting industries. Installation is straightforward for machinists familiar with indexable toolholder systems and standard turret mounting practices.

Key Features

• External grooving and cut-off application with right-hand orientation
• Groove width range of 0.118 inches to 0.125 inches for tight-tolerance grooving
• Maximum depth of cut of 0.69 inches
• Clamp-style insert holding method for secure, repeatable insert positioning
• 0.5-inch square shank with 3.4-inch shank length fits standard CNC lathe turrets
• ISO 13399 compliant toolholder data for CAM and tool management integration

Compatibility

Compatible with DG-series inserts including DGL 3100JS-15D, DGL 3100JS-6D, DGL 3102C-15D, DGL 3102C-6D, DGL 3102J-15D, DGLC 3102C-6D, DGN 3100JS, DGN 3102C, DGN 3102J, DGN 3102JT, DGN 3102LF, DGN 3102LFT, DGN 3202J, DGNC 3102C, DGNM 3202C, DGNM 3202J, DGR 3100JS-15D, DGR 3100JS-6D, DGR 3102C-15D, and additional DG insert codes including DGN-LF/LFT, DGN-MF, DGN-P, DGN-UT/UA, DGN-WP, DGN-Z, DGR-P, DGR-WP, DGR-Z/ZS, DGR/L-C, DGRC/LC-C, and DGR/L-J/JS.

Installation Notes

This toolholder should be mounted by a qualified machinist following the machine tool manufacturer's turret torque and seating specifications. Ensure the machine spindle is fully stopped and the turret is indexed to a safe position before inserting or indexing cutting inserts. Verify insert grade and geometry selection against workpiece material and cutting parameters before initiating a cut. Do not exceed the rated maximum depth of cut or groove width for the installed insert.
