Iscar 2301256 Grooving Cutoff Toolholder 16x16mm Do Grip

Product Description

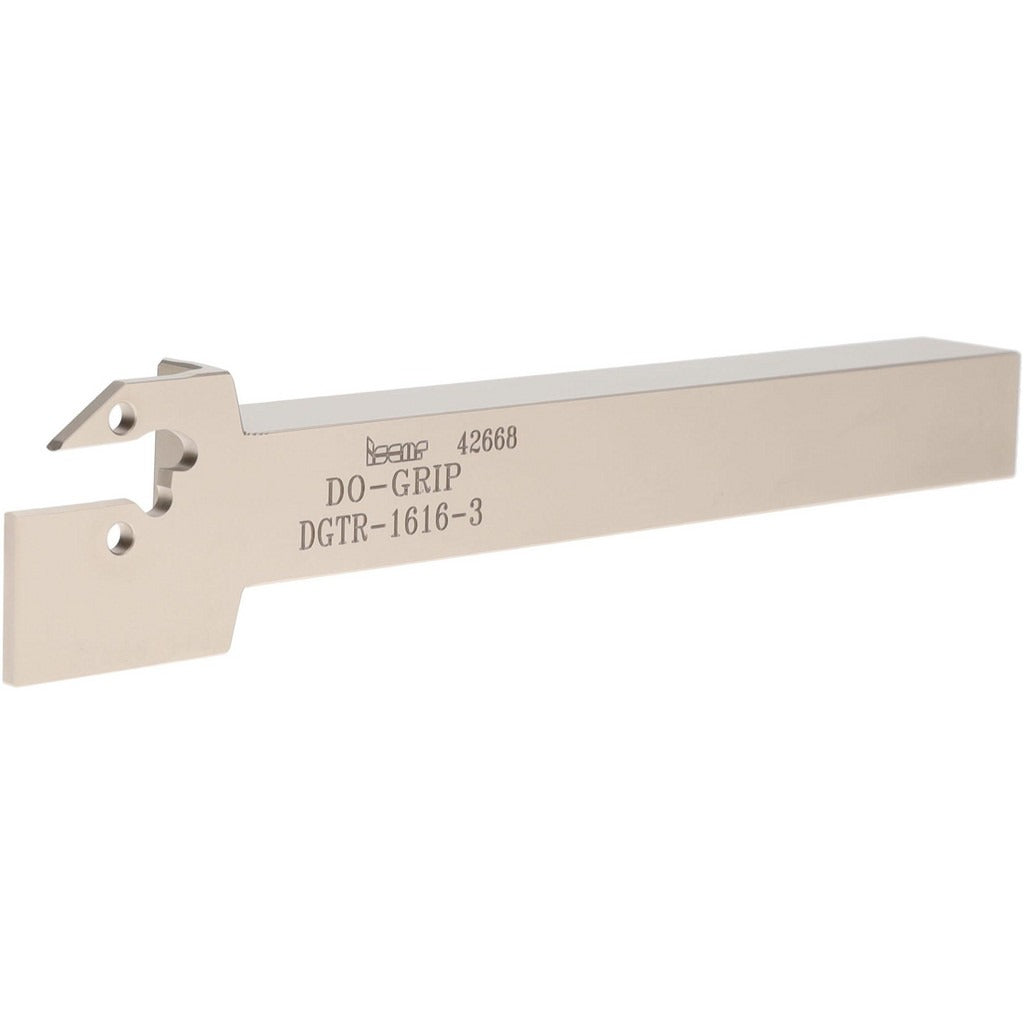

The ISCAR 2301256 is a right-hand indexable grooving and cut-off toolholder in the Do Grip series, designed for use on CNC lathes and turning centers where precise external grooving and parting operations are required. It accepts DG. 1.. and DG. 3.. series inserts and is held by a clamping method that locks inserts securely under cutting load. The toolholder accommodates groove widths from 3.00 mm to 3.18 mm, with a 16 x 16 mm square shank and an overall length of 150.00 mm. It conforms to ISO 13399 tooling data standards.

This toolholder is suited for external grooving and cut-off applications in production turning environments, including both high-volume and job-shop settings. The right-hand orientation positions the cutting edge for standard front-facing lathe operations. Compatible insert codes include DGN-LF/LFT, DGN-MF, DGN-P, DGN-UT/UA, DGN-WP, DGN-Z, DGN/DGNC/DGNM-C, DGN/DGNM-J/JS/JT, DGR-P, DGR-WP, DGR-Z/ZS, DGR/L-C, DGRC/LC-C, and DGR/L-J/JS, providing a wide selection of geometry and coating options for different workpiece materials.

Key Features

• Accepts DG. 1.. and DG. 3.. series inserts for grooving and cut-off operations
• Groove width range: 3.00 mm to 3.18 mm (0.1180 to 0.1250 inches)
• 16 x 16 mm square shank, 121.00 mm shank length
• Overall length of 150.00 mm for consistent tool overhang control
• Clamp-style insert holding for positive insert retention under interrupted and continuous cuts
• Conforms to ISO 13399 cutting tool data representation standard

Compatibility

Compatible with DG. 1.. and DG. 3.. insert series. Compatible insert size codes include DGN-LF/LFT, DGN-MF, DGN-P, DGN-UT/UA, DGN-WP, DGN-Z, DGN/DGNC/DGNM-C, DGN/DGNM-J/JS/JT, DGR-P, DGR-WP, DGR-Z/ZS, DGR/L-C, DGRC/LC-C, and DGR/L-J/JS. MSC/Manufacturer reference number: DGTR/L 1616-3.

Installation Notes

Installation is performed by a machinist or toolroom technician on a CNC or manual lathe equipped with a tool post or turret accepting a 16 x 16 mm shank. Power down and lock out the spindle before changing inserts or seating the toolholder. Ensure the insert pocket and clamping surfaces are clean and free of chips before seating a new insert. Verify shank clamp torque per your machine tool manufacturer's specifications and confirm tool overhang does not exceed recommended limits for the shank size.
