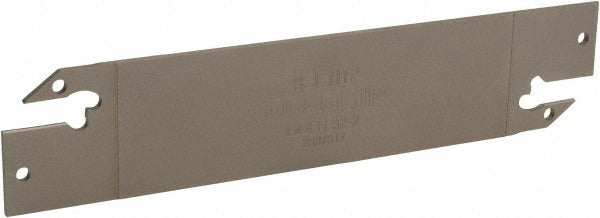

Iscar 2301244 Indexable Cutoff Blade 32mm Double End

Product Description

The ISCAR 2301244 is a double-end neutral indexable cutoff blade designed for grooving, parting, and turning operations on CNC lathes and turning centers. The blade measures 32 millimeters in height, 1.8 millimeters in width, and 150 millimeters in overall length. It uses a self-grip insert holding method compatible with DG.1 and DG.2 series inserts from the Do-Grip and Heli-Grip families. The neutral cutting direction makes it suitable for standard right-hand or left-hand setups without tool post repositioning. Machining professionals and CNC operators select this blade for high-precision material removal in production turning environments.

This blade is applied in production and job-shop turning operations where consistent groove width and clean parting cuts are required. It supports a maximum workpiece diameter of 1.54 inches, making it well suited for small- to medium-diameter bar stock work. The cutting height of 24.8 millimeters and insert width range of 1.90 to 2.50 millimeters allow it to accommodate a practical range of DG.1 and DG.2 style inserts. Typical applications include grooving, parting off, and profiling on steel, stainless, and non-ferrous materials in both manual and automated turning cells.

Key Features

• Double-end design doubles blade utilization before replacement
• Self-grip insert clamping eliminates separate clamping screws for faster insert changes
• Compatible with DG.1 and DG.2 insert styles across Do-Grip and Heli-Grip series
• Neutral cutting direction suits standard turning setups without repositioning
• Conforms to ISO 13399 cutting tool data representation standards
• Compact 1.8 millimeter blade width minimizes material loss during parting operations

Compatibility

Compatible with DG.1 and DG.2 series inserts from the ISCAR Do-Grip and Heli-Grip families. Insert widths between 1.90 and 2.50 millimeters are supported.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. The machine spindle must be fully stopped and the turret or tool post de-energized before seating or replacing the blade or inserts. Use the appropriate torque wrench and tooling keys specified for the tool holder system. Verify insert seating and blade clamping before resuming cutting operations.
