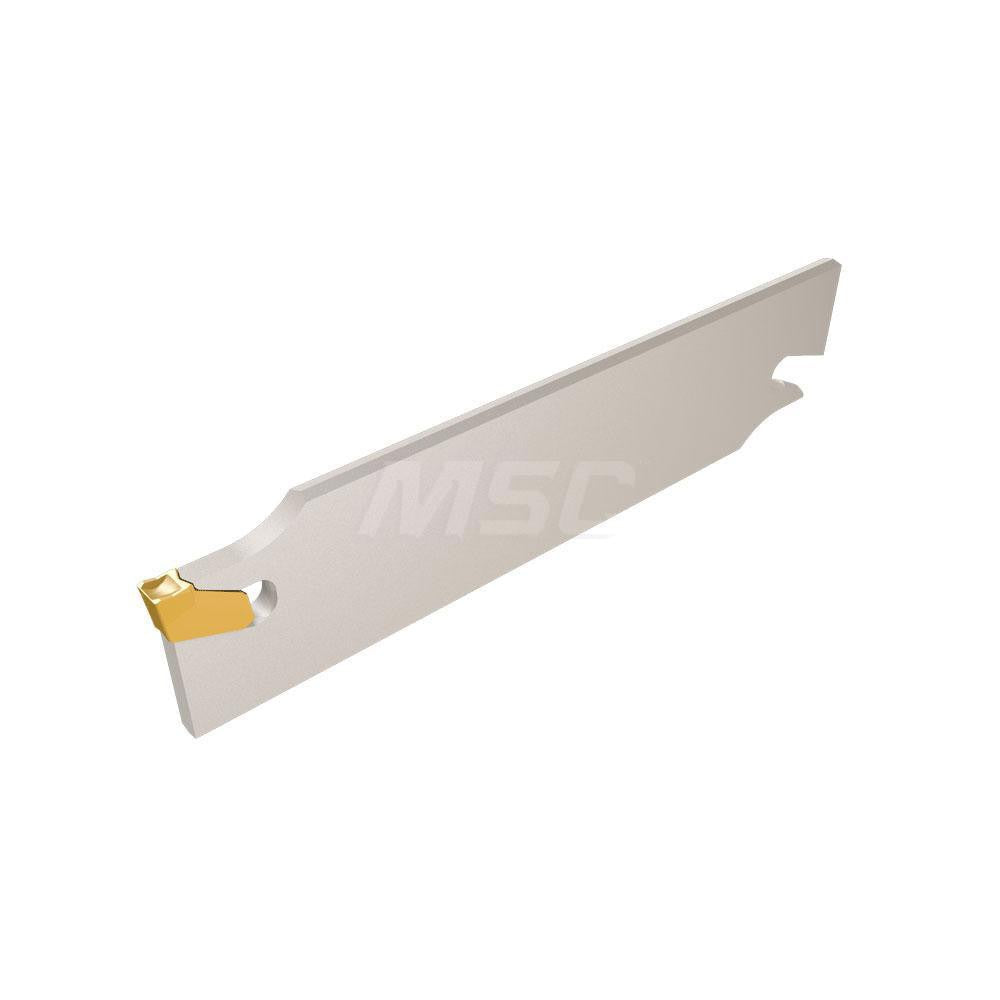

Iscar 2300526 Indexable Cutoff Blade Double End Rh

Product Description

The ISCAR 2300526 is a double-end, right-hand indexable cutoff and grooving blade built to the SGFH blade style. It measures 32 mm high, 3.2 mm wide, and 150 mm in overall length, with a cutting height of 24.8 mm. The blade uses the Self Grip insert holding method, accepting GF-style inserts with a 4 mm insert width. Designed for precision parting, grooving, and turning operations, it is installed and maintained by machinists and CNC tooling technicians working in metalcutting environments. Compliance with ISO 13399 tool data standards ensures consistent integration with modern CAM and tooling management systems.

This blade is suited for grooving, parting, and turning applications on lathes and turning centers in both production and job-shop environments. Its double-end configuration allows both ends of the blade to be used before replacement, reducing tooling cost per cut. The right-hand cutting direction makes it compatible with standard spindle rotation on conventional turning setups. It accommodates workpieces up to 3.94 inches in diameter, covering a broad range of shaft and bar stock diameters common in general machining.

Key Features

• Double-end design extends blade service life by providing two usable cutting ends
• Self Grip insert clamping holds GF-style inserts securely without additional fasteners
• Accepts inserts with a nominal 4 mm width; compatible insert width range spans 3.54 mm to 4.52 mm
• Maximum workpiece diameter of 3.94 inches suits a wide variety of bar and shaft stock
• ISO 13399 compliant for seamless integration with digital tooling data systems
• Right-hand cutting direction matches standard lathe spindle rotation

Compatibility

Designed for use with GF-style inserts (Insert Style: GF.. 4) within the ISCAR Self Grip series; insert width compatibility ranges from 3.54 mm minimum to 4.52 mm maximum.

Installation Notes

Installation and insert changes should be performed by qualified machinists or CNC tooling technicians. Ensure the machine spindle is fully stopped and the machine is placed in a safe, locked-out state before accessing the toolholder or changing inserts. Verify that the insert seats cleanly in the Self Grip pocket and that the blade is properly secured in the toolholder body before resuming cutting operations. Follow the machine tool manufacturer's recommendations for toolholder clamping and overhang limits.
