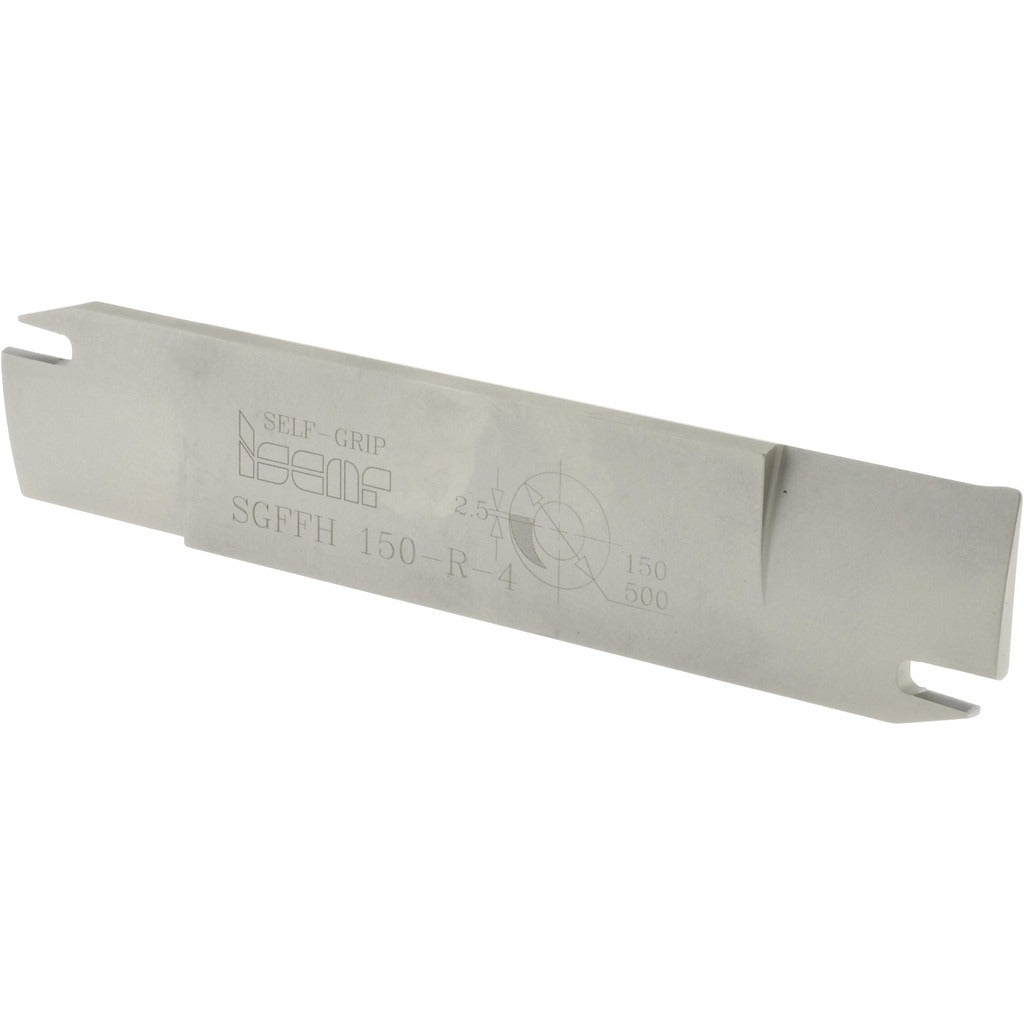

Iscar 2300320 Indexable Cutoff Blade Double End Right Hand

Product Description

The ISCAR 2300320 is a double-end, right-hand indexable cutoff blade designed for grooving, parting, and turning operations on CNC lathes and turning centers. Built to the SGFFH blade style, it measures 32 millimeters high, 5.2 millimeters wide, and 150 millimeters in overall length. The blade uses the Self Grip insert-holding method to secure GFF-N style inserts at a 4 millimeter insert width. It is manufactured to ISO 13399 standards and is intended for use by machinists and toolroom technicians who require precise parting and grooving performance in production environments.

This blade is suited for both production turning and job-shop applications where repeatable parting and grooving cuts are required. It supports a maximum depth of cut of 30 millimeters and accommodates workpiece diameters ranging from approximately 5.91 inches minimum to 19.69 inches maximum. The Self Grip clamping system eliminates the need for a clamping screw, allowing fast insert indexing during high-volume runs. It is compatible with standard ISCAR Self Grip toolholders and blade holders designed for the SGFFH blade profile.

Key Features

• Double-end blade design extends usable tool life by offering two cutting ends per blade
• Self Grip insert-holding method provides secure, screw-free insert clamping for fast indexing
• GFF-N insert style with 4 millimeter insert width suits precision parting and narrow grooving
• Maximum depth of cut of 30 millimeters supports a wide range of workpiece diameters
• Built to ISO 13399 standards for consistent dimensional accuracy and toolholder compatibility
• Right-hand cutting direction for standard lathe spindle rotation setups

Compatibility

Designed for use with ISCAR Self Grip series toolholders and blade holders configured for the SGFFH blade style. Compatible with GFF-N style inserts at a 4 millimeter insert width. Suitable for grooving, parting, and turning applications on CNC and manual turning equipment.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the machine spindle is fully stopped and locked out before mounting or indexing the blade or insert. Seat the blade securely in the toolholder pocket and verify clamping force before resuming cuts. Follow the toolholder manufacturer torque and clamping guidelines; do not exceed the rated depth of cut for the insert and blade combination in use.
