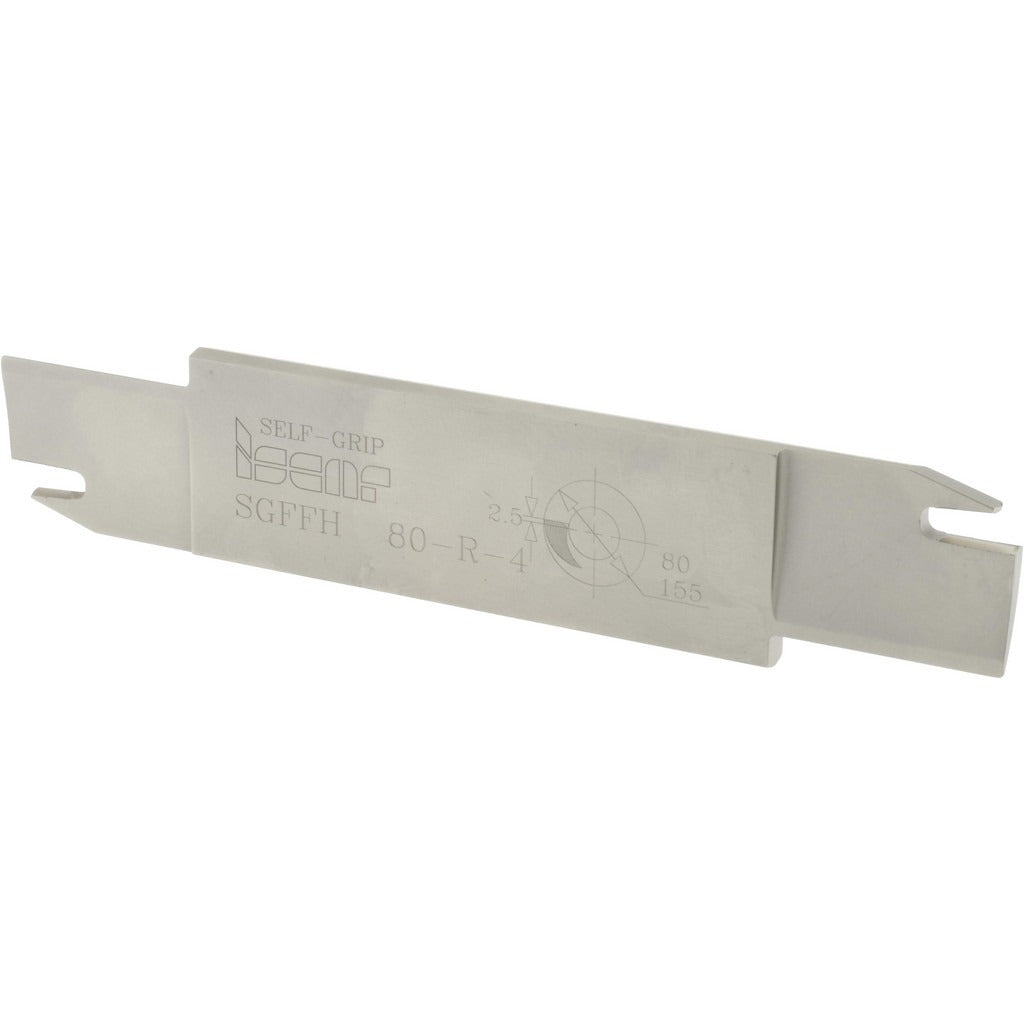

Iscar 2300318 Indexable Cutoff Blade Double End

Product Description

The ISCAR 2300318 is a double-end, right-hand indexable cutoff blade designed for grooving, parting, and turning operations on CNC lathes and turning centers. Built to the SGFFH blade style, it uses the Self Grip insert holding method, which clamps GFF-N series inserts mechanically without screws for fast, secure insert changes. The blade stands 32 mm (1.26 inches) high, measures 5.2 mm (0.20 inches) wide, and has an overall length of 150 mm (5.91 inches). The 4 mm insert width supports precise, narrow cuts. Licensed machinists and CNC turning specialists are the primary installers and users of this tooling.

This blade is suited for grooving, parting off, and profiling operations in production turning environments, both job-shop and high-volume manufacturing. It handles workpiece diameters from 3.15 inches minimum up to 6.10 inches maximum, with a maximum depth of cut of 30 mm (1.18 inches). The double-end design allows the blade to be flipped and reused when one end reaches the end of its service life, extending toolholder utilization. Right-hand cutting orientation is standard for conventional lathe setups.

Key Features

• Double-end blade — flip to second cutting end to extend service life
• Self Grip clamping holds GFF-N inserts without screws for fast changeover
• Supports grooving, parting, and turning operations in a single blade style
• Maximum depth of cut: 30 mm (1.18 inches)
• Compatible workpiece diameter range: 3.15 inches to 6.10 inches
• Conforms to ISO 13399 tooling data standards for CAM and presetter integration

Compatibility

Designed for use with GFF-N series inserts in Self Grip compatible toolholders and blade holders accepting the SGFFH blade style with a 4 mm insert width.

Installation Notes

Installation and insert changes should be performed by a qualified machinist with the machine fully powered down and the spindle locked. Seat the blade securely in the holder and confirm the Self Grip mechanism has fully engaged the insert before resuming cuts. Verify workpiece diameter and depth-of-cut requirements fall within the rated limits before starting a new job. Follow the machine tool manufacturer and shop safety guidelines for tooling setup and torque on any clamping hardware.
