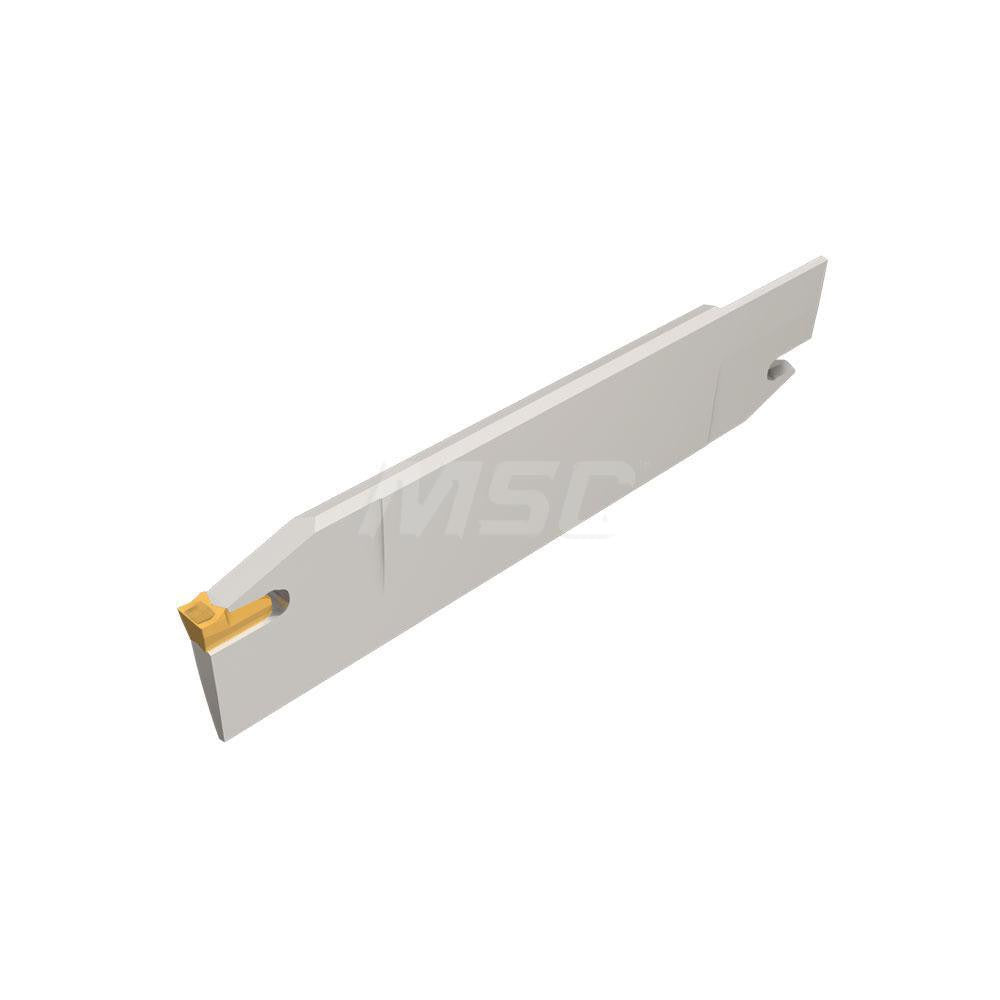

Iscar 2300312 Indexable Cutoff Blade Double End Right Hand

Product Description

The ISCAR 2300312 is a double-end, right-hand indexable cutoff and grooving blade designed for use on CNC lathes and turning centers. Built to the SGFFH blade style, it accepts GFF-N series inserts held in place by a Self Grip clamping method, eliminating the need for clamping screws and enabling fast insert indexing. The blade measures 32 mm high, 5.2 mm wide, and 150 mm in overall length. It is compatible with 3 mm wide inserts and allows a maximum depth of cut of 20 mm. This toolholder blade is specified and installed by machinists and CNC tooling technicians in production turning environments.

This blade is suited for grooving, parting, and turning operations on workpieces ranging from approximately 2.56 inches minimum to 3.62 inches maximum diameter. The double-end configuration allows the blade to be flipped and reused when one end reaches the end of its service life, extending tool life and reducing tooling cost per operation. Typical applications include OD grooving and full parting on steel, stainless, aluminum, and similar machinable materials in both job shop and high-volume production settings.

Key Features

• SGFFH blade style with Self Grip insert clamping - no clamping screws required
• Double-end design provides two usable cutting ends per blade
• Accepts GFF-N style inserts, 3 mm insert width
• Maximum depth of cut: 20 mm (0.787 inches)
• Compatible workpiece diameter range: 2.56 inches to 3.62 inches
• Conforms to ISO 13399 tooling data standards

Compatibility

Designed for use with GFF-N series inserts at 3 mm insert width within the ISCAR Self Grip tooling system. Specific machine or turret compatibility should be verified against the blade shank dimensions prior to installation.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician with the machine fully powered down and in a safe, locked-out state. Secure the blade in the tool turret or holder block according to the machine manufacturer's torque and clamping specifications. Verify insert seating in the Self Grip pocket before initiating any cutting cycle. Inspect the blade and insert for wear or damage at regular intervals and replace as needed to maintain dimensional accuracy and safe operation.
