Intermatic WP5500C 2-Gang Vertical Hinge Cover 4-3/4 Inch

Product Description

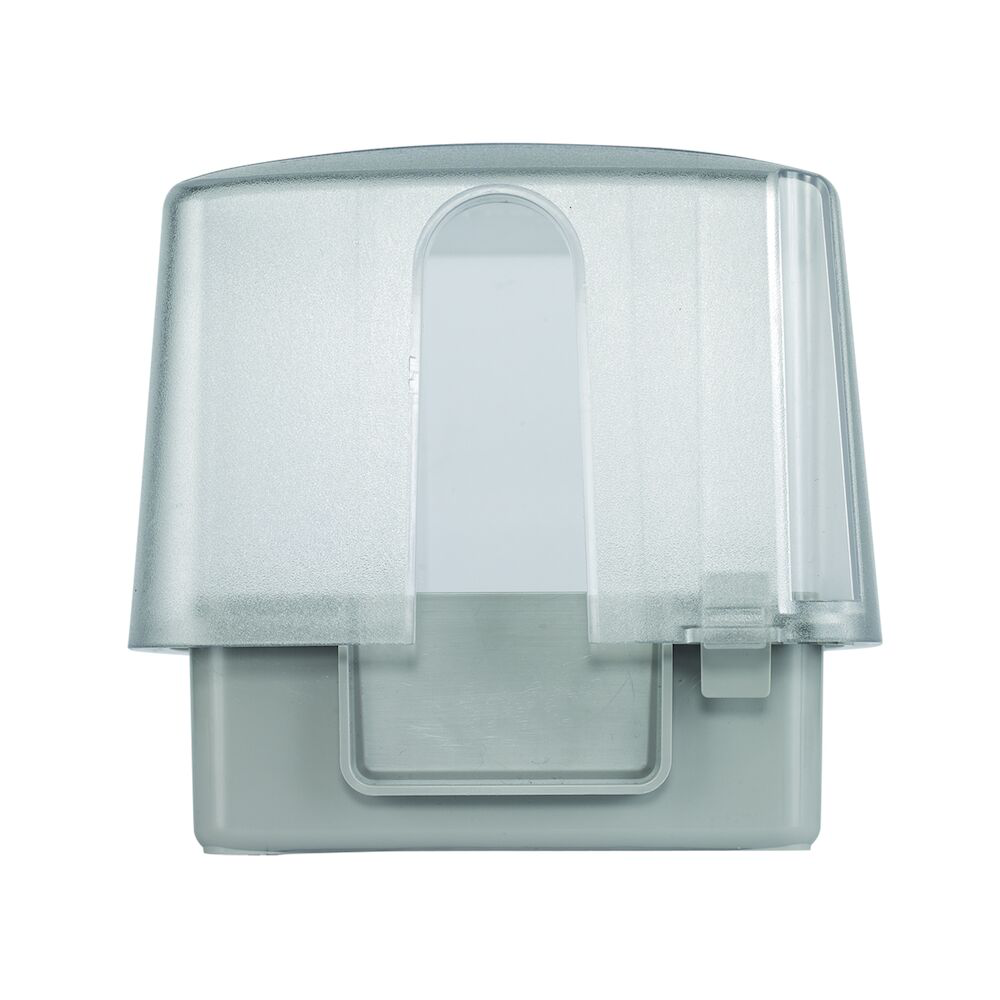

The Intermatic WP5500C is a weatherproof while-in-use cover designed for outdoor electrical receptacles. It features a double gang design and is made from heavy-duty polycarbonate material. This cover complies with the 2014 NEC Article 406.9(B)(1) for wet locations and extra-duty applications. Installation is simple, requiring minimal tools.

• Complies with 2020 NEC Article 406.9(B)(1) for wet locations.
• UL certified for Type 3R outdoor enclosures.
• Includes pre-adhered neoprene gasket for effective waterproofing.

Product Highlights

This cover offers protection for two outlets and is suitable for various applications, from residential use to commercial installations. With a reinforced hinge pin and impact rating, it ensures durability and reliability in harsh conditions.

Product Information

Standard Information

• Manufacturer: Intermatic
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: WP5500C
• Material: Polycarbonate
• Color: Clear
• Dimensions: 4-3/4 inches depth, 6 inches height, 6-1/2 inches width
• Mounting Type: Vertical
• Number of Gangs: 2
• Number of Outlets: 2
• Temperature Rating: -51 degrees Celsius
• Compliance: CEC Rule 26-702, CSA, UL Listed
