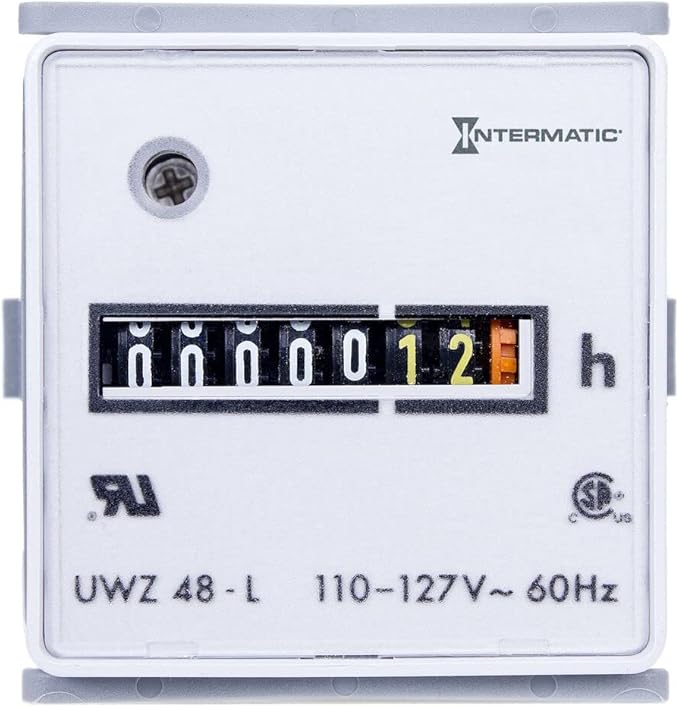

Intermatic UWZ48E-120U Flush Mount AC Hour Meter 120V

Product Description

The INTERMATIC UWZ48E-120U is a flush mount AC hour meter. The UWZ48E unit fits into a 1.79" x 1.79" (45.5 x 45.5 mm) cutout with a plastic slip-on retaining bracket. It supports panel thickness up to .35" (9 mm) for flush mounting and also fits square or round openings for 72 mm with optional 72 mm bezel.

• Flush mounted with bracket
• Fits into a 1.79" x 1.79" (45.5 x 45.5 mm) cutout
• Supports panel thickness up to .35" (9 mm) for flush mounting

Product Highlights

The INTERMATIC UWZ48E-120U AC hour meter is designed for flush mounting and easy installation in various panel configurations.

Product Information

Standard Information

• Brand: INTERMATIC
• Manufacturer Part Number: UWZ48E-120U
• Country of Origin: China

Technical Specifications

• Color: White
• Connector Type: Quick Connect, screw
• Contact Material: Copper
• Terminal: Screw Terminal
• Material: Plastic
• Brand: Intermatic
• Specification Met: CSA
• Maximum Voltage: 120 Volts
• Number of Items: 1
• Unit Count: 1.0 Count
• Manufacturer: Intermatic Incorporated
• Connector Gender: Male
• Part Number: UWZ48E120U
• Item model number: UWZ48E-120U
• Item Package Quantity: 1
• Head Style: round
• Number of Handles: 1
• Measurement System: inch, metric
• Mounting Type: Flush
• Included Components: UWZ48E-120U Hour Meter
• Batteries Required?: No
