Intermatic T7801B 7-Day Mechanical Time Switch 40A 125V DPDT

Product Description

The Intermatic T7801B is a robust mechanical time switch designed to provide precise scheduling and control. Ideal for commercial, industrial, and residential applications, this device allows for distinct daily operation schedules.

• Separate clock motor terminals enhance flexibility by enabling switching of loads not on line voltage.

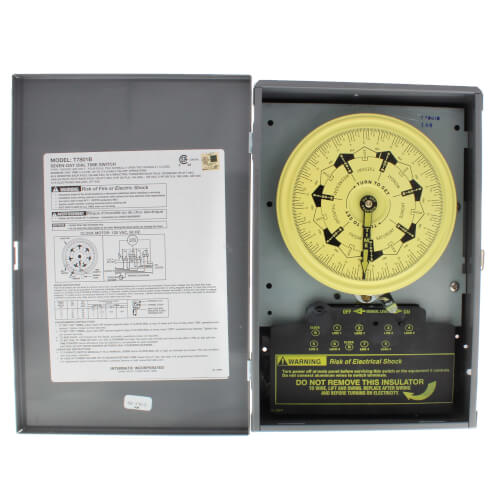

• Equipped with 7 ON and 7 OFF trippers for daily cycle programming.

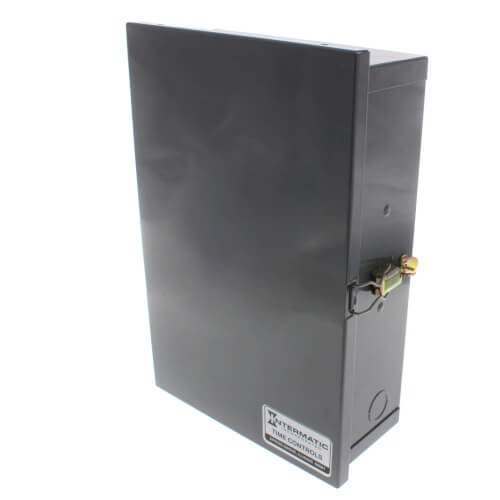

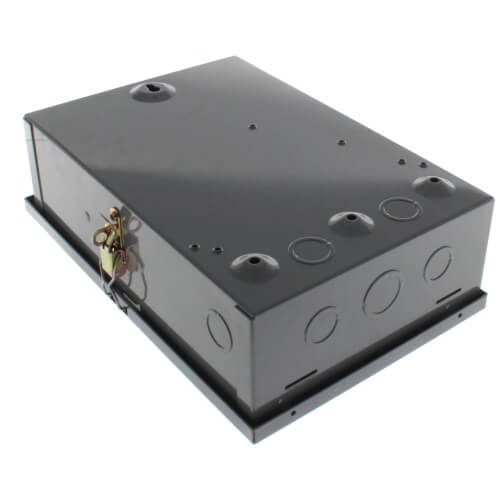

• Features a durable steel enclosure ensuring longevity in various environmental conditions.

Product Highlights

The Intermatic T7801B offers true 7-day load control with a minimum ON/OFF time of 3.5 hours, making it suitable for a wide range of applications where precise time management is critical.

Product Information

Standard Information

• Brand: Intermatic
• MPN: T7801B

Technical Specifications

• Electrical Capacity: 40 Amps at 125 Volt
• Configuration: DPDT switch with 2 NO/2 NC contact form
• Dimensions: 12.5 inches height x 8.25 inches width x 4 inches depth
• Enclosure: NEMA 1 rated for indoor use
• Temperature Range: Operates between -40 to 130 degrees Fahrenheit
• Mount Type: Wall mount
