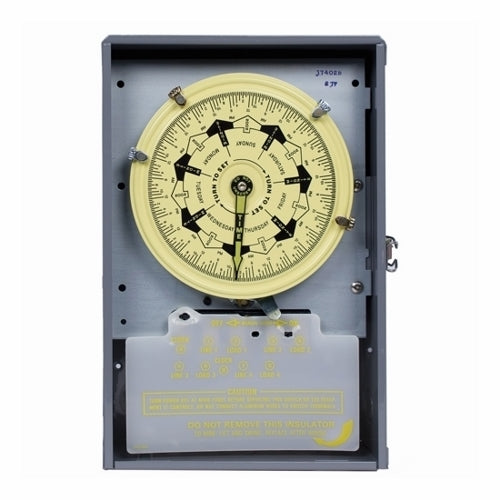

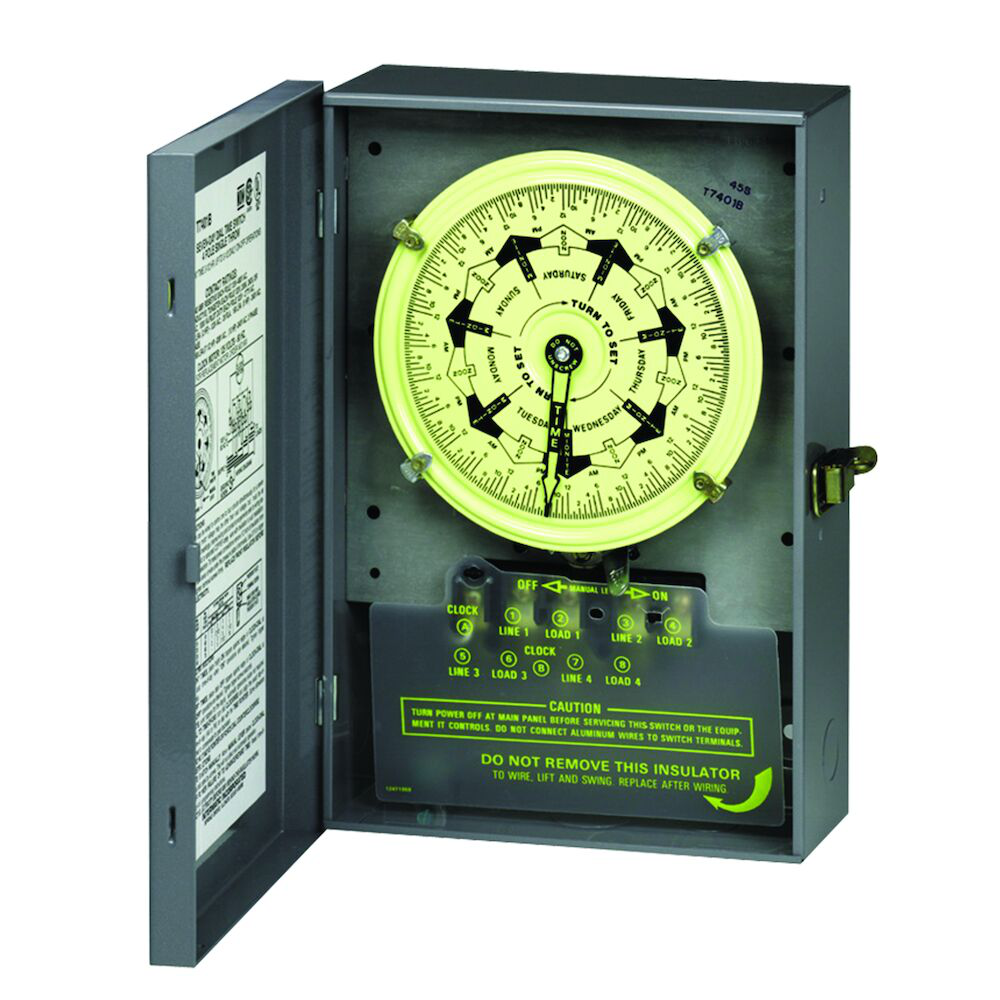

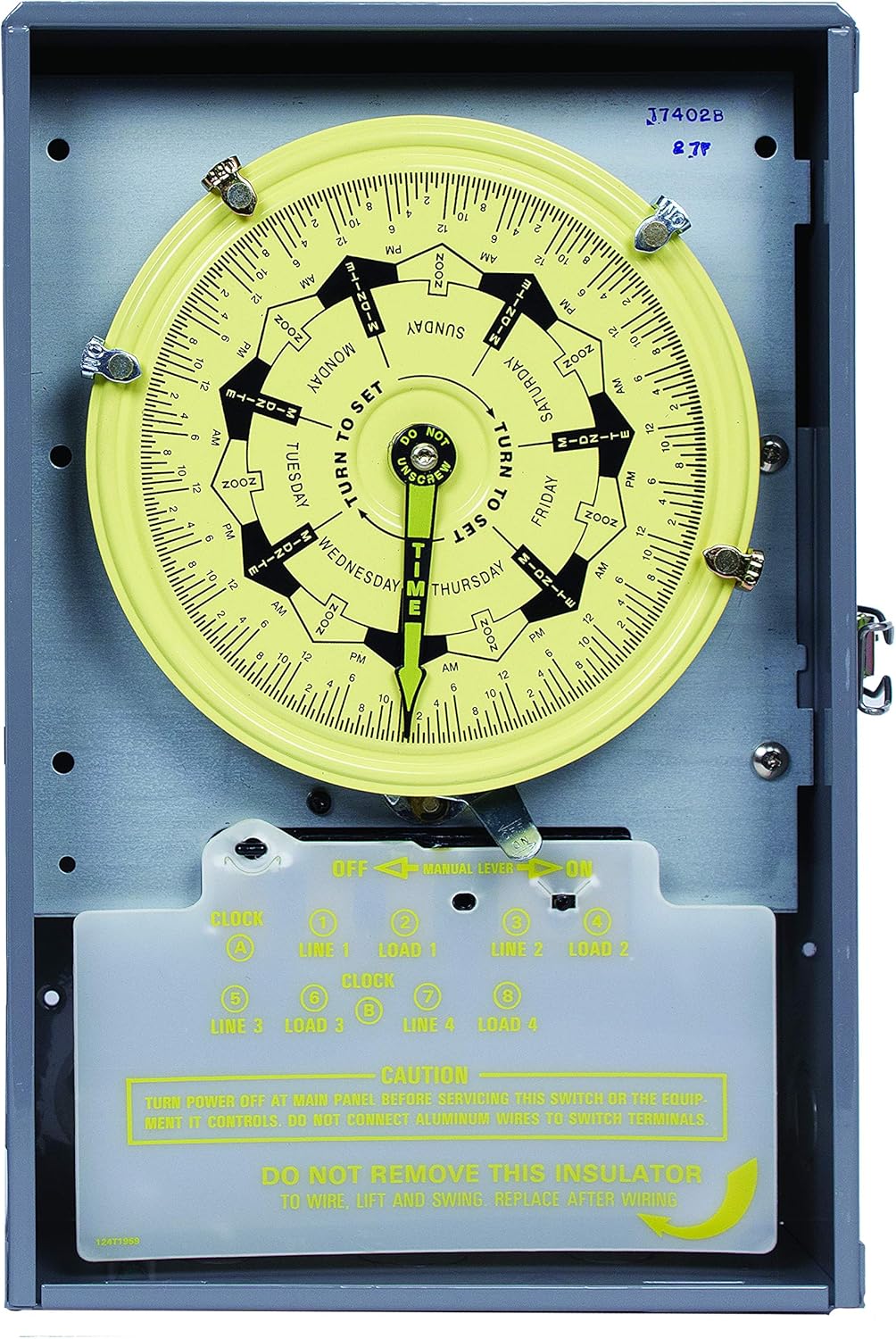

Intermatic T7402B 4PST 208/277-Volt 7-Day Mechanical Time Switch with Nema 1 Indoor Enclosure

Product Description

Intermatic's T7402B model is a 7-Day Mechanical Time Switch designed to offer precise scheduling across a week. Engineered to control up to four separate circuits, this versatile time switch can manage diverse loads offering distinct daily schedules. Ideal for controlled and efficient power management in commercial, industrial, and residential settings.

• 7 independent day schedules for customizable daily control.
• Handles 40 amps of electrical load per circuit.
• Durable NEMA 1 rated indoor steel enclosure protects internal components.

Product Highlights

This mechanical timer facilitates one ON/OFF operation per day, ensuring reliable performance and easy setup.

Product Information

Standard Information

• Brand: Intermatic
• Model: T7402B
• Type: 7-Day Mechanical Time Switch
• Enclosure: NEMA 1 Indoor Cover

Technical Specifications

• Voltage: 208-277 VAC
• Dimensions: 12-1/2 inches height x 8-1/4 inches width x 4 inches depth
• Contact Configuration: 4 NO - 4PST
• Operating Temperature Range: -40 to 130 degrees F
• Material: Steel
• Mounting Type: Wall Mount
• Power Consumption: 1000 VA at 120 - 277 VAC/3W
• Max Wire Size: 8 AWG
• Min Wire Size: 14 AWG
