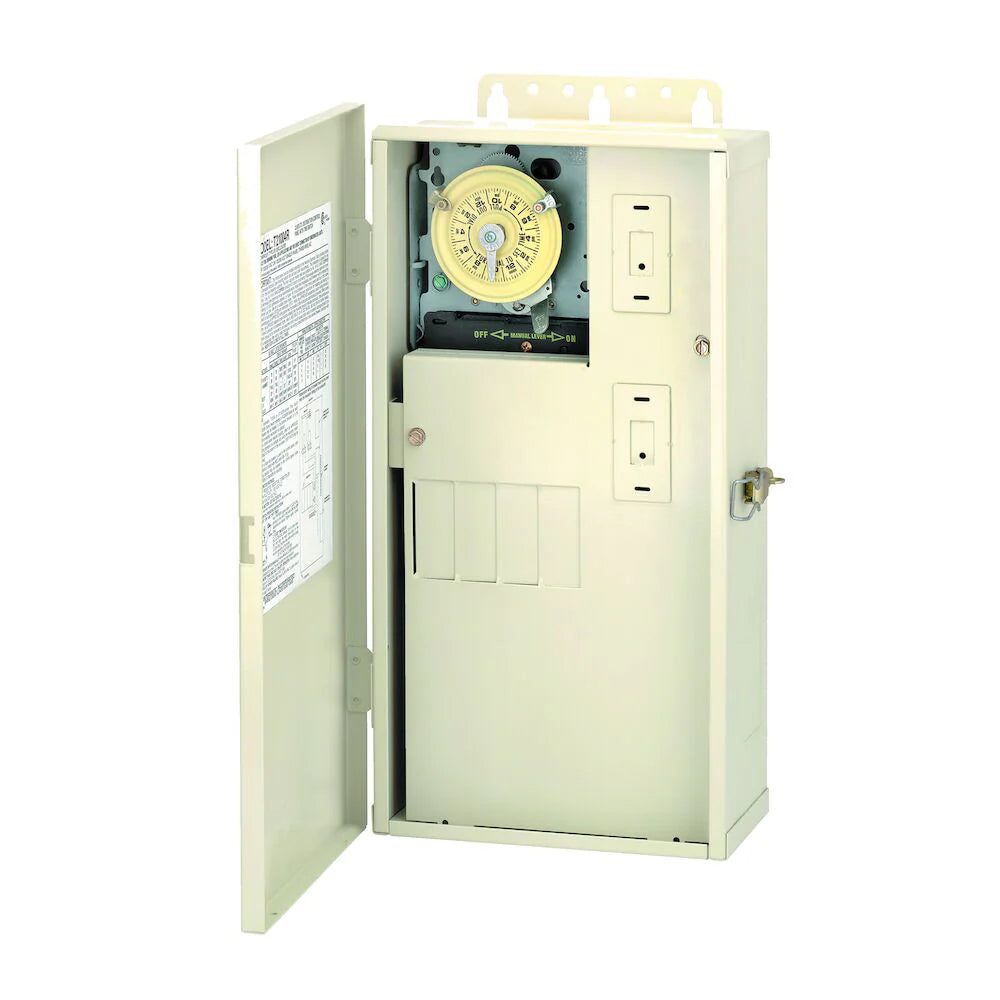

Intermatic T21004R NEMA 3R Load Center 240 VAC 60 Amp DPST Control System

Product Description

The Intermatic T21004R NEMA 3R Load Center is a versatile solution for your pool and spa control needs. This model, T21004R, can be used as a load center only or integrated with a heavy-duty mechanical time switch or wiring devices for a complete system.

• Four breaker spaces
• Accepts multiple interchangeable type breakers
• Surface mounting with brackets included

Product Highlights

The Intermatic load center features four breaker spaces and accepts a variety of mechanisms and interchangeable breakers. It includes provisions for installing additional switches or GFCI receptacles on the side and inside.

Product Information

Standard Information

• Brand: Intermatic
• MPN: T21004R

Technical Specifications

• Amperage Rating: 60 A
• Application: Distribution/Control Panel, Motor Control, Pump Control
• Contact Form: DPST
• Country of Origin: Mexico
• Dimensions: 16-3/4 in H x 8-7/8 in W x 4-3/8 in D
• Enclosure: NEMA 3R
• Frequency Rating: 60 Hz
• Horsepower: 5 hp
• Input Voltage: 208-277 V
• Mounting: Surface with Brackets
• Number of Circuits: 1
• Number of Phases: 1 Phase
• Number of Poles: 2
• Operating Temperature: -40 To 130 degrees F
• Power Consumption: 3 W
• Standards/Approvals: cCSAus Certified
• Switch Type: DPST
• Time Setting: 24 hr
• Voltage Rating: 240 VAC
• Warranty Length: 1 yr
