Intermatic T21001R Pool/Spa Control Panel T101M 60-Amps

Product Description

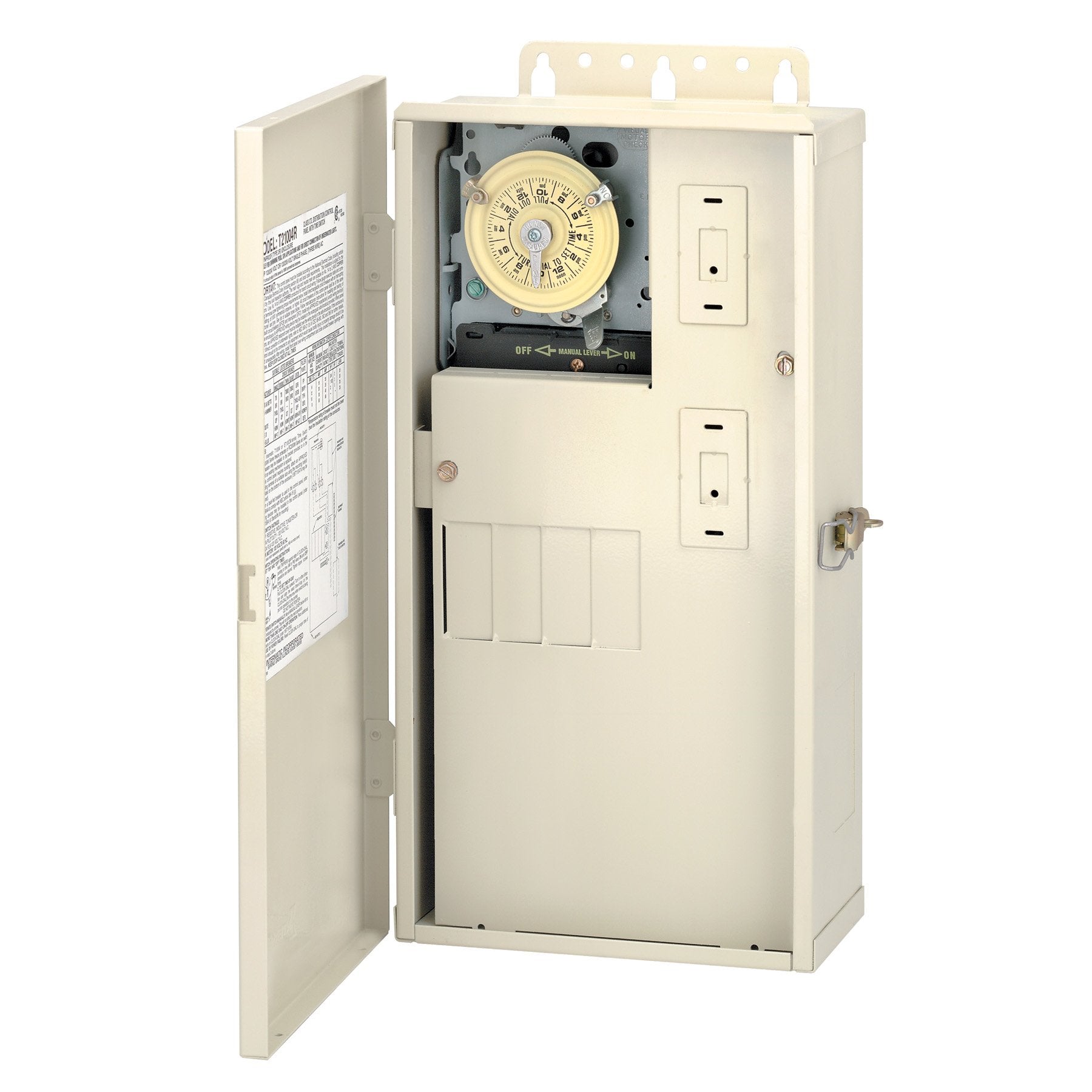

The Intermatic T21001R is a control panel featuring an all-weather NEMA 3R enclosure, a 4 circuit breaker base, an equipment grounding bar, and a mechanical time switch mechanism. The circuit breaker base accepts interchangeable type breakers. The enclosure provides for installing additional switches or GFCI receptacles. It is suitable for pool/spa equipment and lights applications.

• MECHANICAL CONTROL PANEL AND TIME SWITCH
• Contains a 4 circuit breaker base
• Additional switches or GFCI receptacles on the side and inside

Product Highlights

The Intermatic T21001R is ideal for controlling pool/spa equipment and lights. It features a NEMA 3R enclosure and a mechanical time switch.

Product Information

Standard Information

• Brand: INTERMATIC
• Manufacturer Part Number: T21001R

Technical Specifications

• Application: Pool/Spa equipment, lights
• Voltage Rating: 120 VAC at 60 Hz
• Enclosure: NEMA 3R
• Approval: CSA (Canada and US)
• Knockouts: Five combination 1/2"-3/4" and three 3/4" - 1" on the bottom, one combination 1/2"-3/4" on the left side, one 3/4"-1" on the back and one combination 1-3/4" x 2-3/4" knockout on the right side for mounting switches or GFCI
• Panel Rating: 60 Amp 120/240 VAC or 120/208 VAC; Single Phase-60 Hz
• Time Switch Rating: 30 Amp Resistive Inductive, Tungsten or 1000 VA pilot duty each pole 120/208/240 VAC; 2 HP (24 FLA) - 120 VAC; 5 HP (28 FLA) - 240 VAC
• Agency Approval: CSA/C-US
