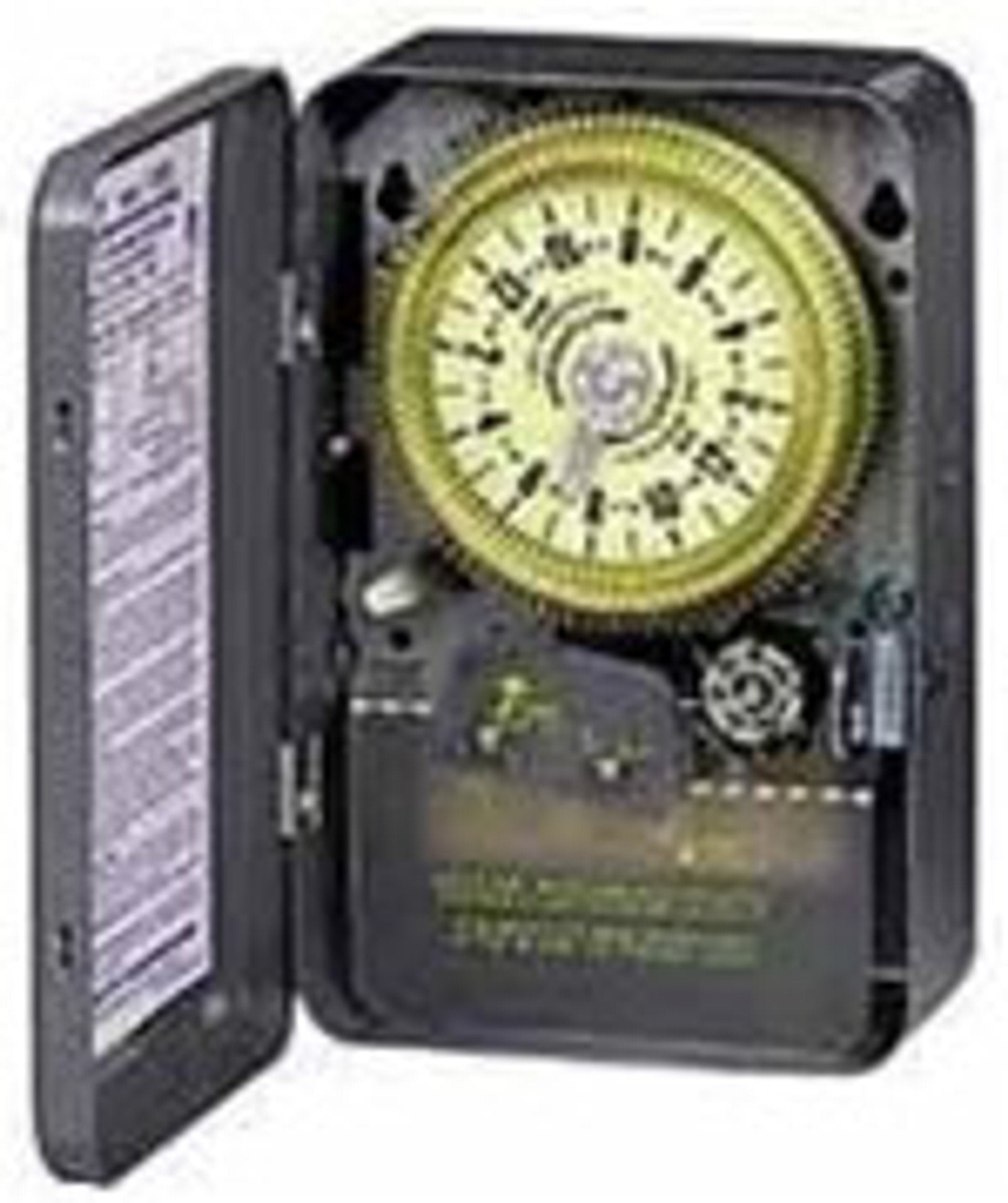

Intermatic T1975E SPDT 24 Hour Time Switch 480-Volt

Product Description

The Intermatic T1975E is a mechanical time switch designed for 480 Volt AC applications. This time switch offers a functionality of up to 96 operations in a twenty-four hour period, which includes forty-eight ON and forty-eight OFF cycles. Users can set the device with precision due to trippers that slide in and out of the dial. The minimum ON/OFF duration is fifteen minutes, enabling efficient scheduling for various electrical devices.

• Operates at 480 volts AC
• Up to 96 operations daily (48 ON/48 OFF)
• Minimum ON/OFF time of 15 minutes

Product Highlights

This time switch features a sturdy Type 1 indoor steel enclosure and utilizes a SPDT switch for reliable operation. The model also allows for flexible scheduling, including skipper options to manage daily operations effectively.

Product Information

Standard Information

• Brand: Intermatic
• Material: Steel

Technical Specifications

• Voltage: 480 Volts AC
• Dimensions: 7-7/8 inches H x 5-1/8 inches W x 3-7/16 inches D
• Amperage Rating: 20 A
• Enclosure Type: NEMA 1
• Time Setting: 15 min to 24 hr
• Contact Form: SPDT (1NO-1NC)
• Certification: CSA
• Warranty Description: See manufacturer's description
