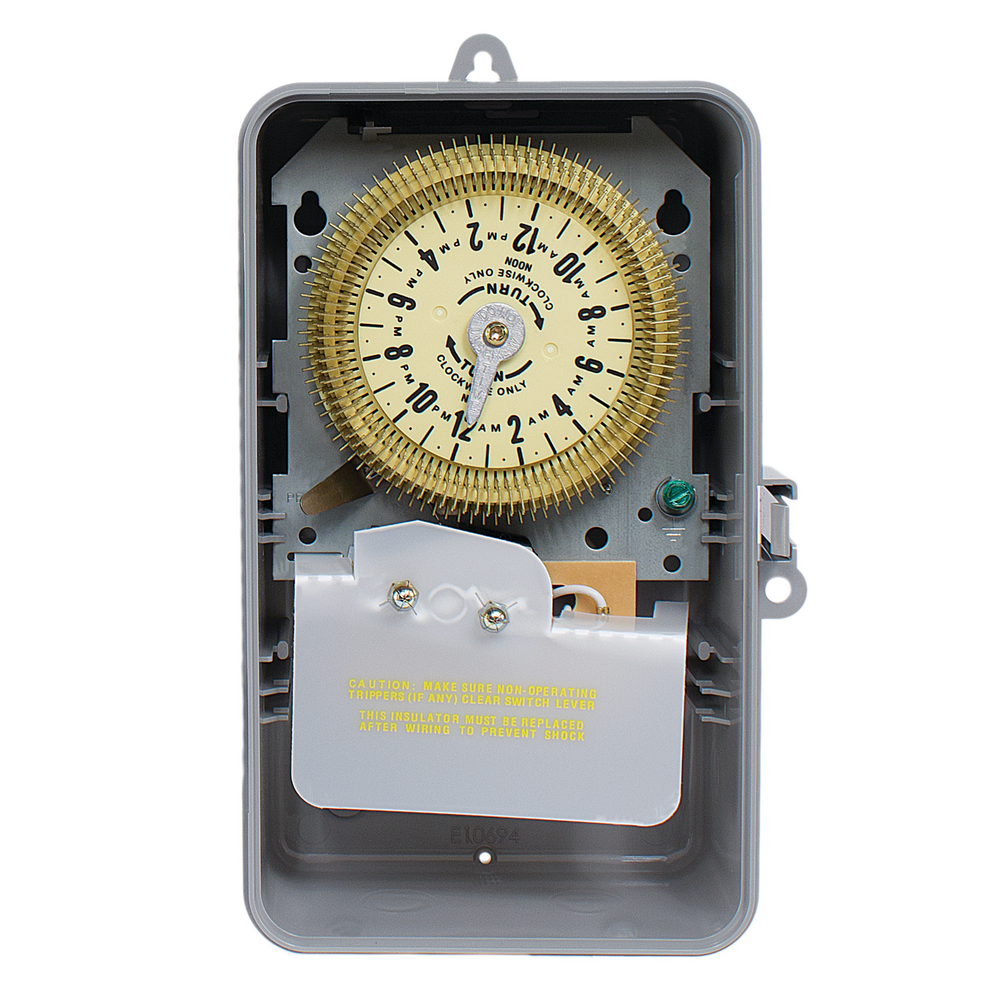

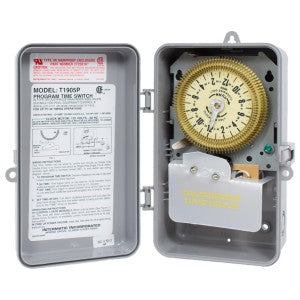

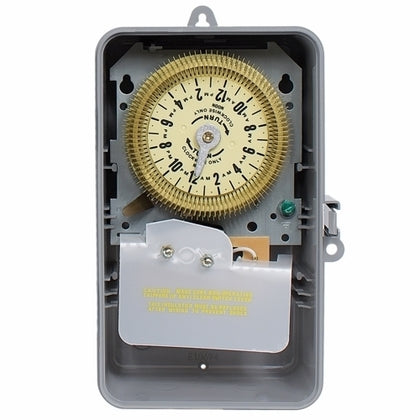

Intermatic T1905P 24-Hour Mechanical Time Switch 125 VAC 15 Minute Interval

Product Description

The INTERMATIC T1905P is a mechanical time switch that provides flexible scheduling with 15-minute intervals. The trippers slide in and out easily for fast and accurate settings. It can control up to 20 A of electrical load and has a single pole, double throw switch.

• Provides up to 96 operations (48 ON/48 OFF) every 24 hours
• Models with skipper wheel allow for operations to be omitted on selected days of the week
• 15-minute intervals

Product Highlights

The INTERMATIC T1905P time switch is ideal for indoor and outdoor lighting control and timing/scheduling ON/OFF.

Product Information

Standard Information

• Brand: INTERMATIC
• Manufacturer Part Number: T1905P
• Country of Origin: MEXICO

Technical Specifications

• Input Voltage Range(s): 125 VAC, 60 Hz
• Minimum ON/OFF Times: 15 min
• Operation Mode: 24 hour
• Switch Type: SPDT
• California Proposition 65: Lead
• Country of Origin (Intermatic): MEXICO
• CSA Certification: cCSAus
• Enclosure Type: Indoor/outdoor type 3R plastic
• Has Manual Override: Yes
• Hz: 60
• Maximum Power Consumption (W): 3 W
• Motor Load Ratings Ranges: 1/2 HP, 125 VAC, 60 Hz; 1 HP, 250 VAC, 60 Hz
• Number Of Circuits: 1
• Number of Trippers Included: 96
• Off Events: 48
• On Events: 48
• Other Certifications and Compatibilities: Green Energy
• Resistive (NO) Range(s): 20 A, 125-480 VAC
• RoHS Certification: N/A
• Skipper Wheel: Not Included
• Total Events: 96
• Warranty Period: 1-Year limited
• Wire Size Max: #12 AWG
• Wire Size Min: #14 AWG
• Wiring Option: Terminals
• Operating Temperature Max (°C): 54
• Operating Temperature Max (°F): 130
• Operating Temperature Min (°C): -40
• Operating Temperature Min (°F): -40
• Product Depth (in): 4
• Product Depth (mm): 101.6
• Product Height (in): 10
• Product Height (mm): 254
• Product Width (in): 6.5
• Product Width (mm): 165.1
• Unit Carton Height (in): 4.25
• Unit Carton Length (in): 11.75
• Unit Carton Weight (lb): 2.295
• Unit Carton Width (in): 7.31
• Units Per Pallet: 144
• ECCN: EAR99
• Application: Indoor/Outdoor
• Mounting Type: Wall
• Clock Motor Voltage: 125
• Frequency Rating: 60
• HP Rating: 1/2 HP @ 125 VAC, 1 HP @ 250 VAC
• Load Rating: 20A
• Time Cycle: 24
• Timer Range: 15 MIN - 24 HR
• Timer Switch Type: Electromechanical
• Poles: 1
• Wattage: 3
• Type: Electromechanical, Time Switch
• CA Prop 65 Message: Please see the Warning @ www.P65Warnings.ca.gov
