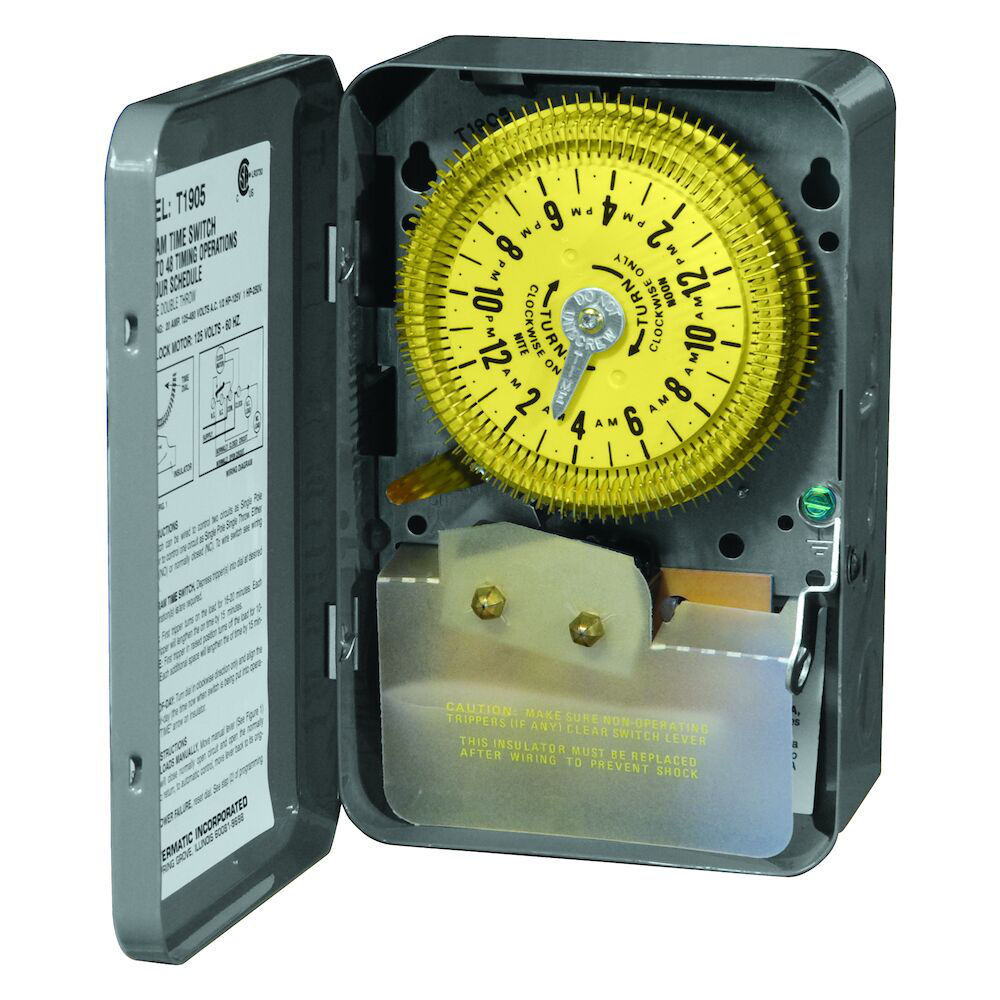

Intermatic T1905 Mechanical Timer Switch 125 VAC 20 Amp

Product Description

The Intermatic T1905 Mechanical Timer Switch is an efficient device designed to control electrical loads on a 24-hour cycle. This timer switch operates at 125 VAC and can handle up to 20 Amps, making it suitable for industrial and commercial settings. It provides flexible scheduling with its 15-minute intervals.

• Handles up to 20 A of electrical load
• 15-minute interval settings
• Designed for industrial and commercial use

Product Highlights

Install the Intermatic T1905 Mechanical Timer Switch for precise and reliable control of electrical devices. This switch is ideal for applications requiring adjustable scheduling, such as lighting and motor control.

Product Information

Standard Information

• Voltage Rating: 125 VAC
• Amperage Rating: 20 A

Technical Specifications

• Brand: Intermatic
• MPN: T1905
• Type: Electro Mechanical
• Series: T1900
• Dimensions: 7-7/8 in H x 5-1/8 in W x 3-7/16 in D
• Horsepower: 1 hp
• Contact Form: 1NO-1NC, SPDT
• Time Setting: 15 min to 24 hr
• Mounting Type: Wall
• Enclosure Type: NEMA 1
• Temperature Rating: -40 to 130 deg F
• Power Consumption: 3 W
• Applications: For Indoor use
