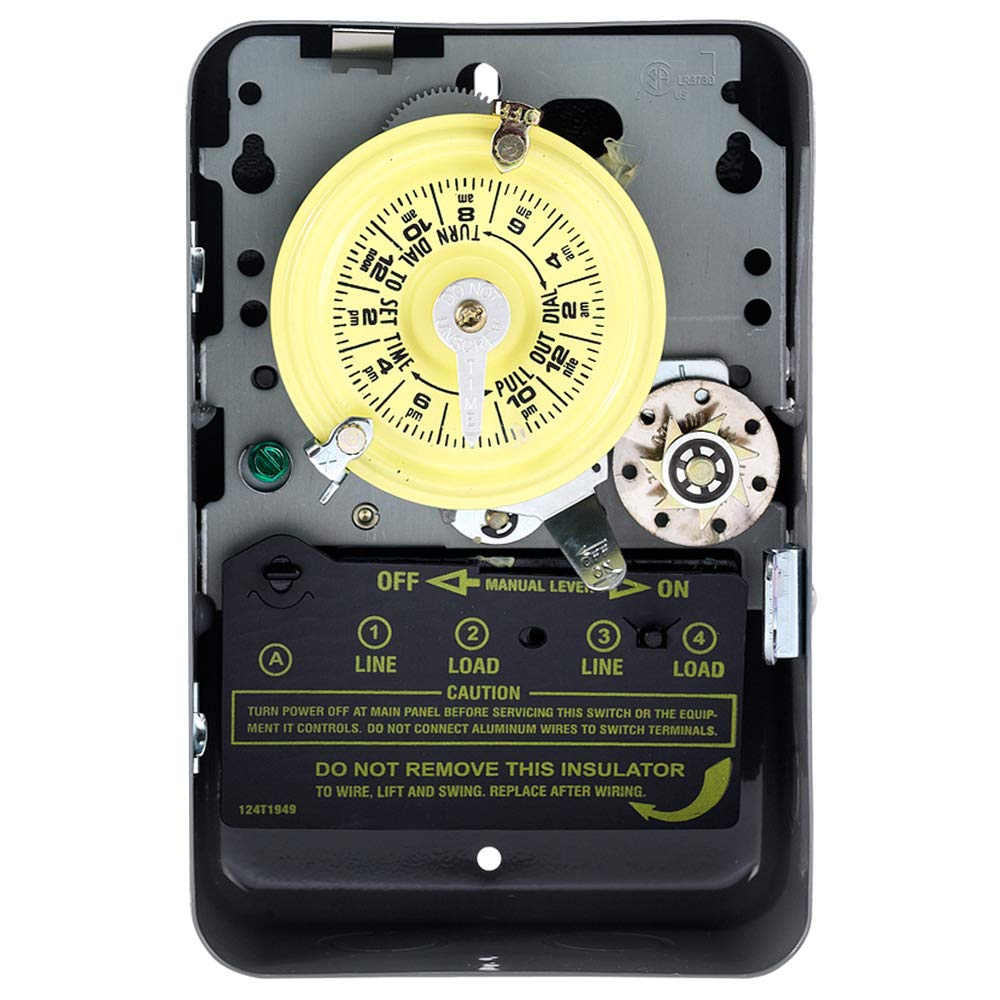

Intermatic T173 DPST 24 Hour 125-Volt Time Switch with Type 1 Indoor Enclosure

Product Description

The Intermatic T173 is a DPST 24-hour timer switch designed for accurate timing in various applications. This switch operates on 125 volts and supports electrical loads up to 40 amps per pole. It features a manual override and includes one ON and one OFF tripper, along with three day-skipper screws to allow for selected days to be omitted in the timer schedule.

• Controls loads up to 40 A per pole
• Direct control for up to 10 ON/OFF operations each day
• Minimum ON/OFF time of one hour

Product Highlights

The T173 switch is suitable for commercial, industrial, and residential applications. It is designed for indoor use, enclosed in a durable NEMA 1 case, providing protection in various environments.

Product Information

Standard Information

• Brand: Intermatic
• MPN: T173

Technical Specifications

• Voltage: 125 VAC
• Amperage: 40 A
• Horsepower: 2 hp
• Dimensions: 7.81 in H x 5 in W x 3 in D
• Contact Form: DPST
• Enclosure: NEMA 1
• Operating Temperature: -40 to 130 degrees F
• Number of Poles: 2
• Max On/Off Cycles: 12
• Minimum On/Off Time: 1 hour
